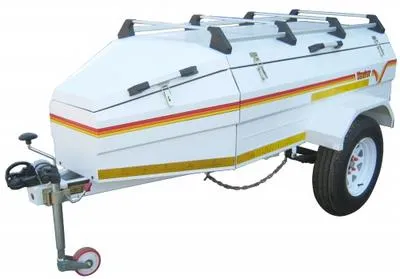

Voyager is a new series of leisure trailer that sports economy and maximim space utilisation.

The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid.

Added stability when parked, comes from two extension legs, that neatly tuck away. It features superb space utilisation getting more into less. This trailer has the following:

Features

• A deep body of over 500 mm for those larger items
• Body constructed of zinc galvanised sheet steel
• A large nosecone for additional storage
• 13 inch wheels for rough terrain, plus spare wheel

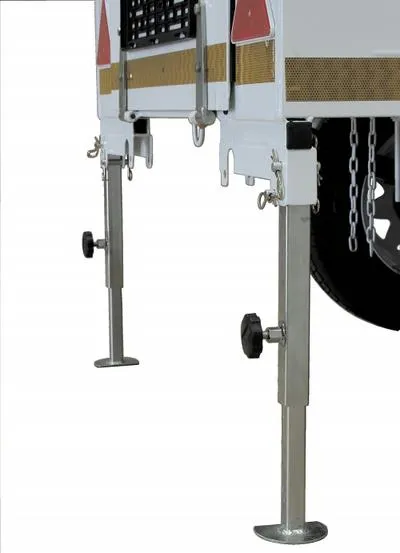

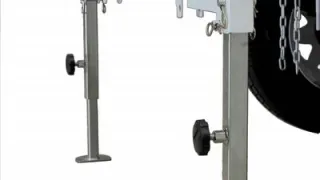

• Two extension legs providing stability on uneven ground
• A robust aluminium roof rack provides for carrying large items externally

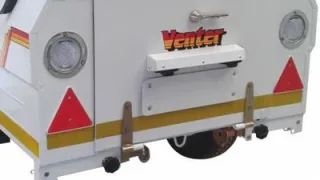

• A wide rear tailgate for access to the trailer interior

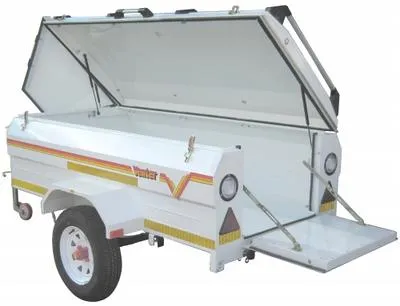

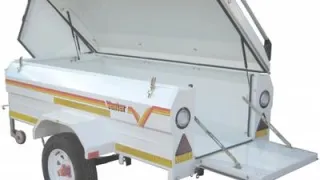

• A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior

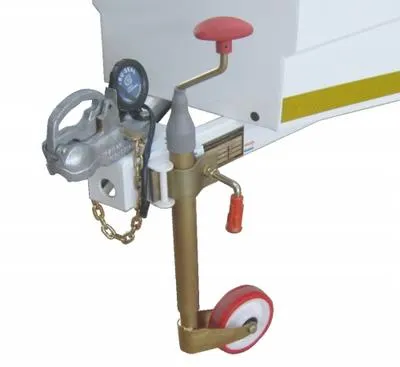

• 6 inch adjustable jockey wheel
• 36 inch 6 blade leaf springs
• 8 ring holders for securing luggage inside
• Very sturdy coupler
• Strong construction using 30% more steel than standard trailers
• A long life 1250kg axle
• Numberplate twin light fitting
• Aluminium handles

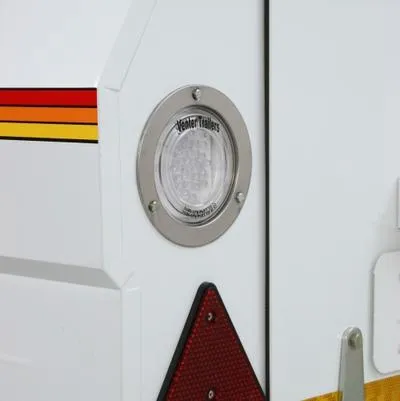

• New multi-function LED light

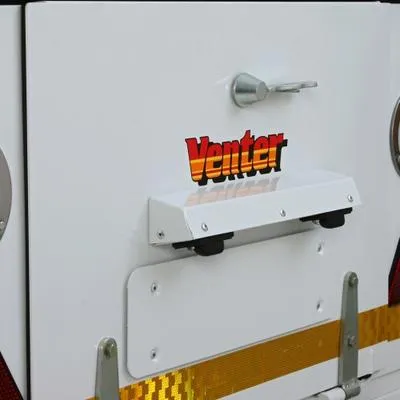

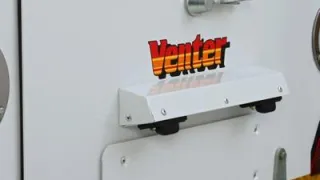

• New numberplate holder





Dimensions
A    Height (over all) 1225 mm
B    Height (side) 640 mm
C    Length (body) 1805 mm
D    Length (over all) 2750 mm
E    Width (inside) 1135 mm
F    Width (over all) 1575 mm
G    Ground Clearance 460 mm
I    Length (nose-cone) 650 mm

Technical Info
Tare Mass 250 kg
GVM 750 kg
Pay Load 500 kg
Axle Length 1400 mm
Axle Capacity 1250 kg
Leaf Springs 6 blade 36 inch
Wheels 165 x 13 inch

Doors
Door (rear - height) 500 mm
Door (rear - width) 620 mm (J)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
