Features:

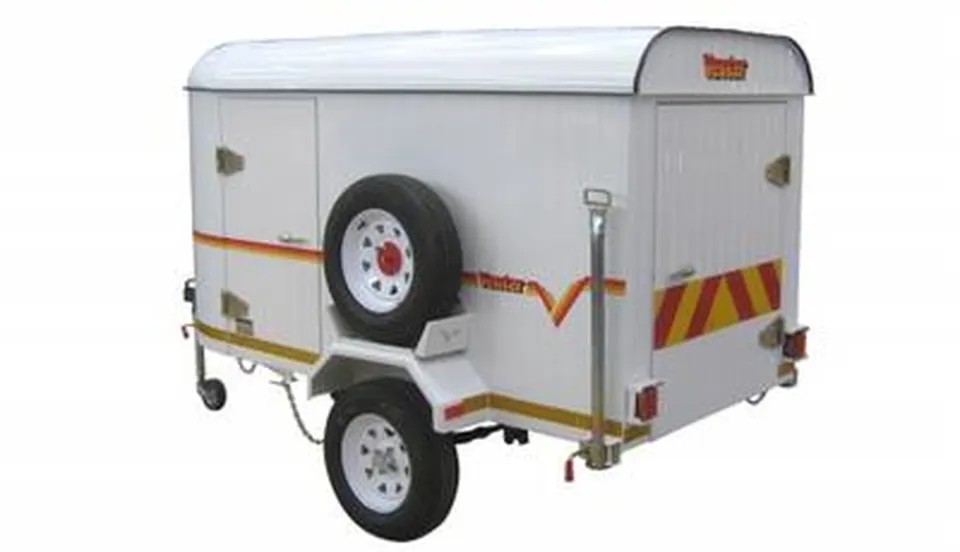

Designed for transportation of luggage, bulky goods, plants, sport equipment, parcels etc.
Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.

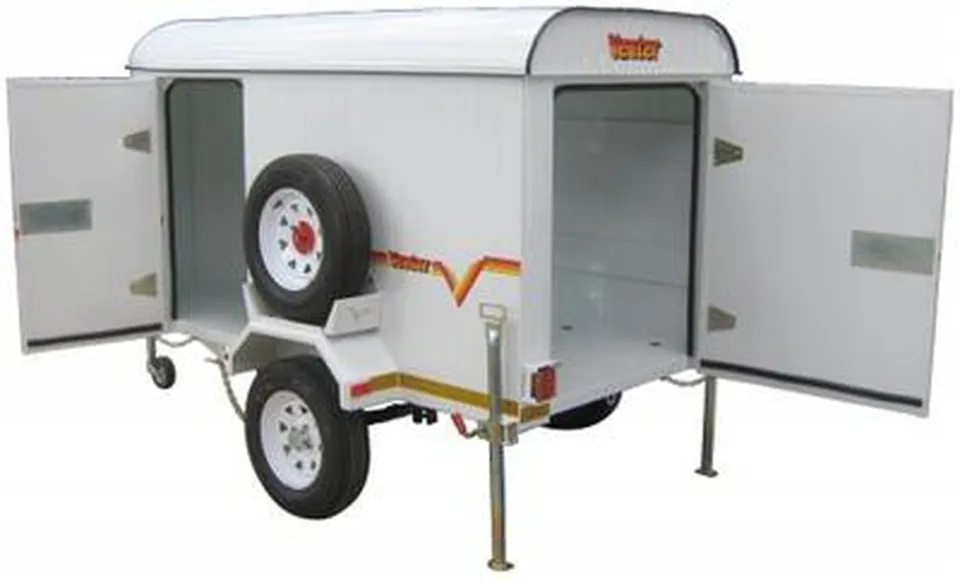

Pad-lockable doors have heavy-duty robust hinges for longevity

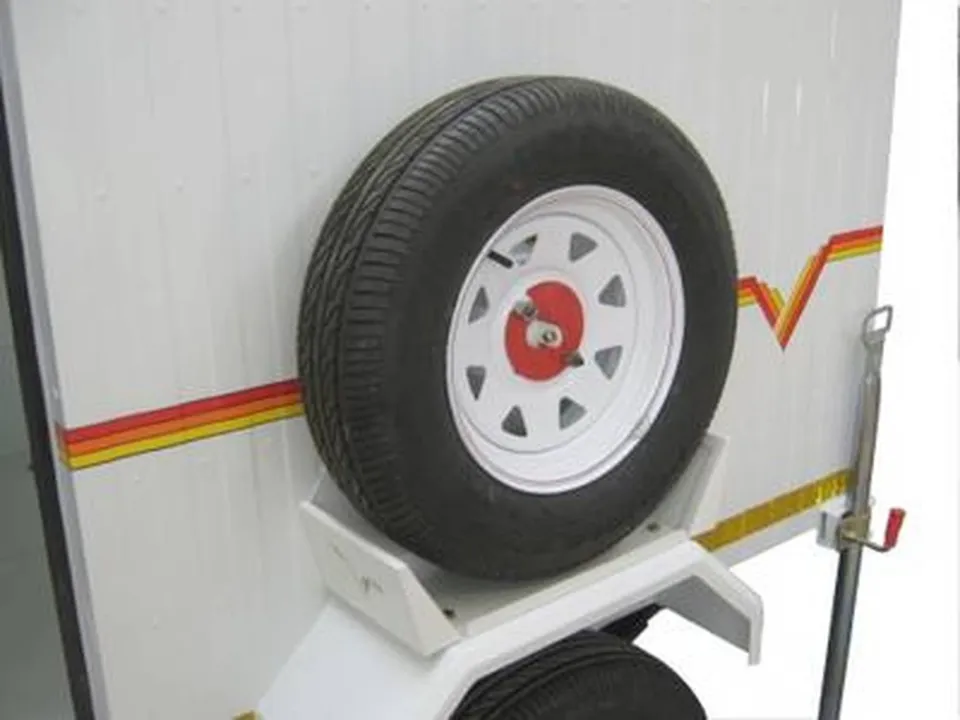

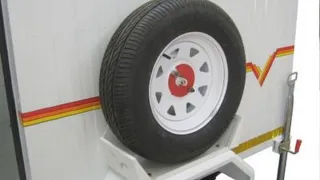

Pad-lockable spare wheel holder mounted on left mudguard

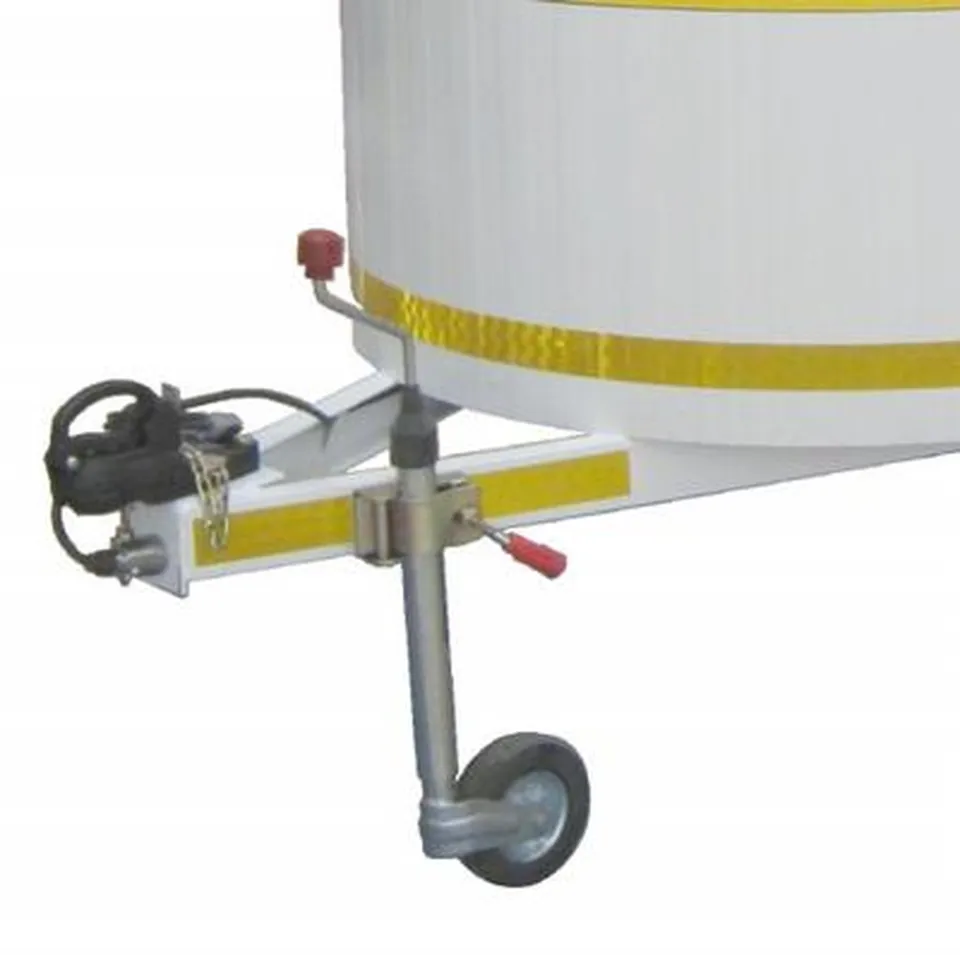

Adjustable jockey wheel 6 inch

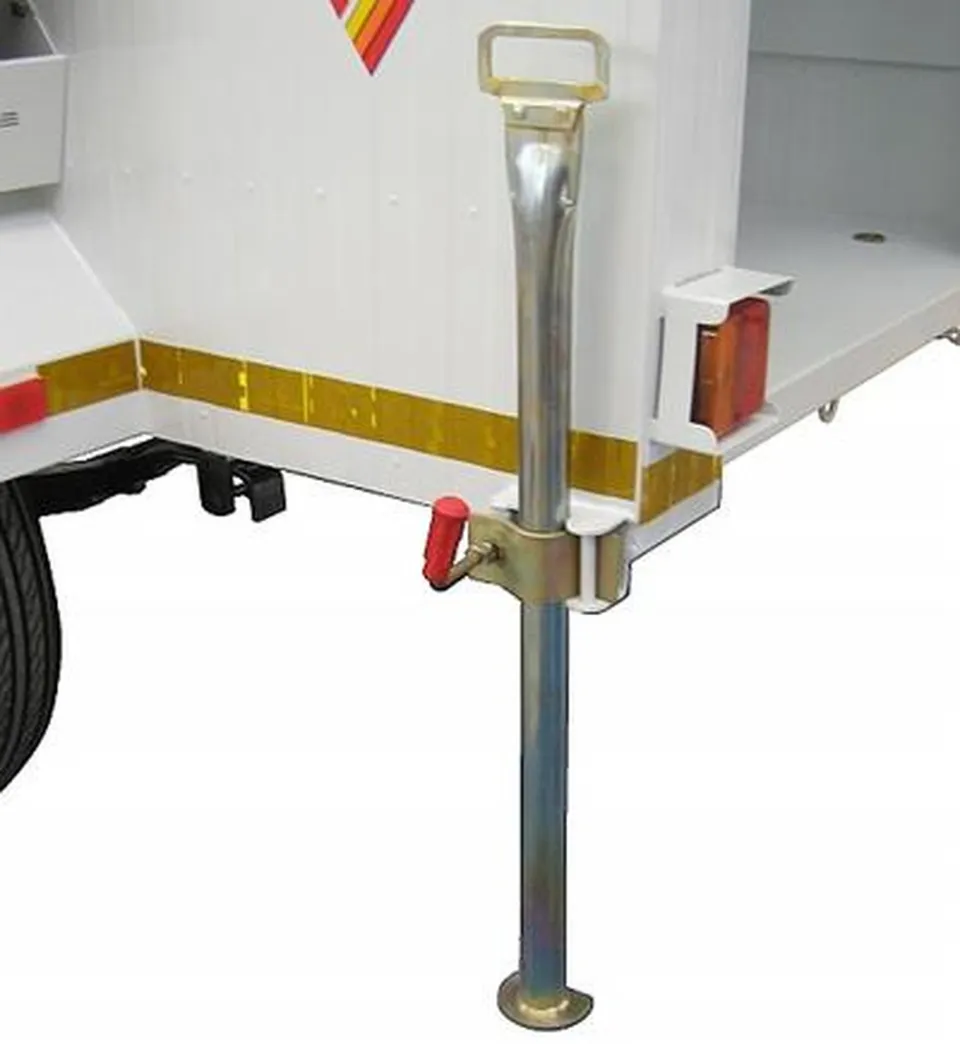

Adjustable rigid support legs for uneven ground
7 x tie-down rings

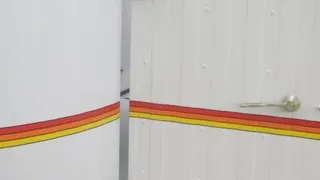

Sides are strengthened by formed hat-sections which prevents drumming and vibration.
New aerodynamic round nose creating additional storage space.
The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.

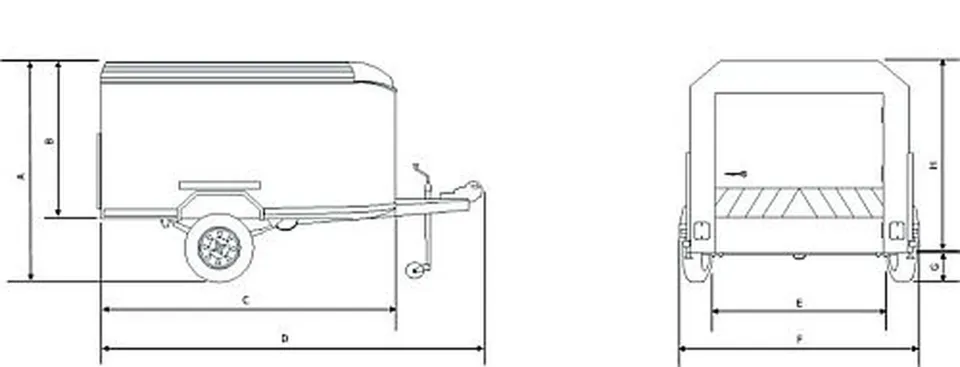

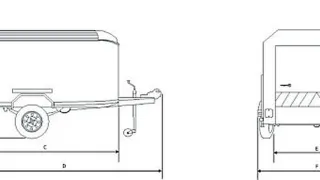

Dimensions:

A - Height (over all) - 1820 mm
B - Height - 1350 mm
C - Length (body) - 2690 mm
D - Length (over all) - 3235 mm
E - Width (inside) - 1200 mm
F - Width (over all) - 1660 mm
G - Ground Clearance - 215 mm

Technical Info:

Tare Mass: 340 kg
GVM: 750 kg
Pay Load: 410 kg
Brakes: No brakes
Axle Length: 1480 mm
Axle Capacity: 1250 kg
Leaf Springs: 8 blade
Wheels: 165 x 13 inch

Doors:

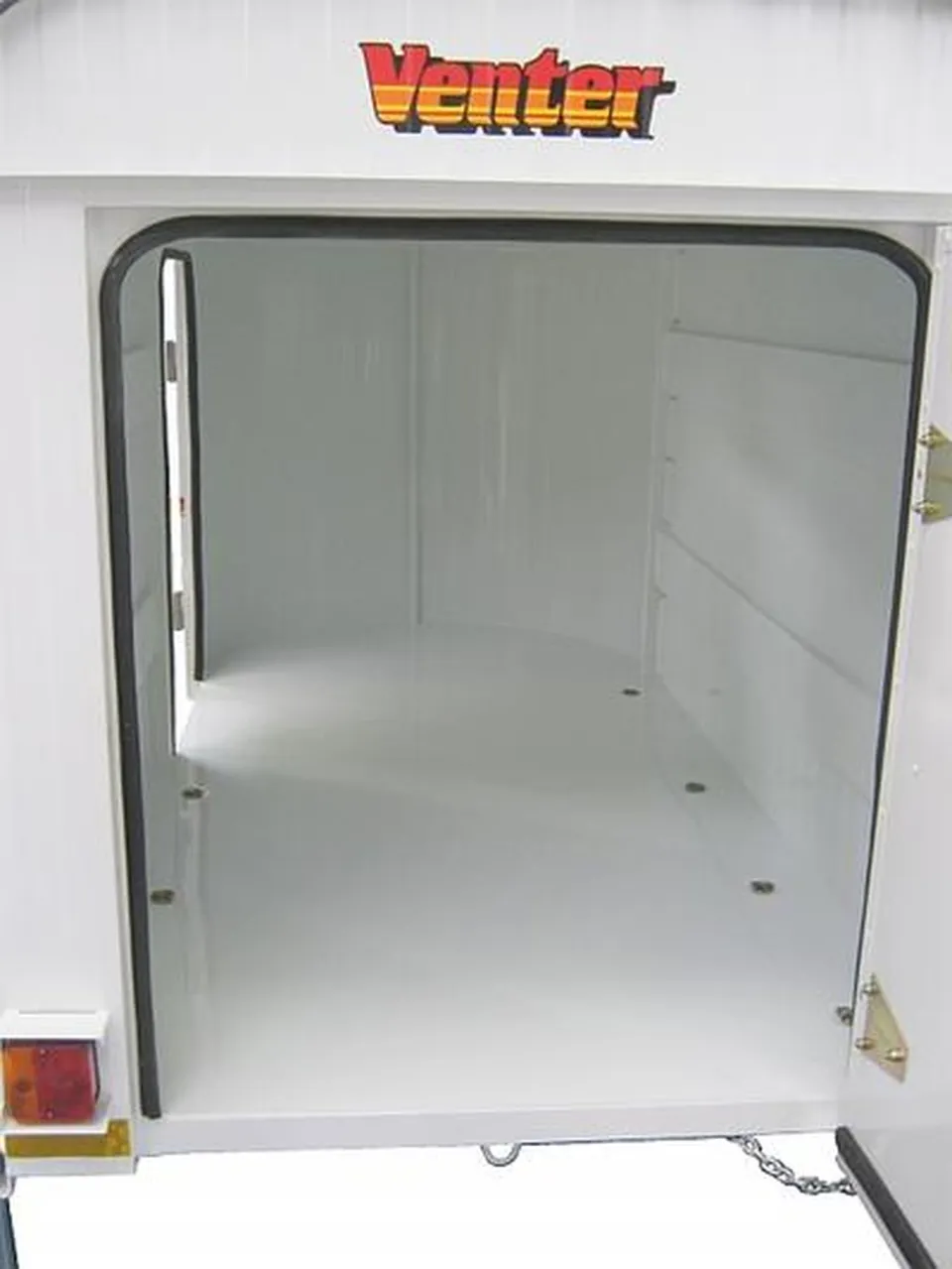

Door (rear - height) 1010 mm
Door (rear - width) 845 mm
Door (side - height) 1010 mm
Door (side - width) 550 mm

Optional Extra’s:
Spare Wheel
Rubber Linings
