Features

• Front nose sports a new streamlined shape reducing wind resistance

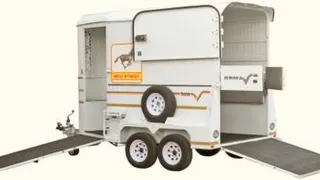

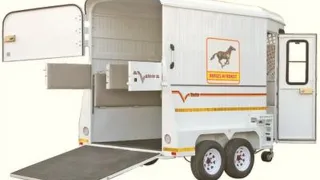

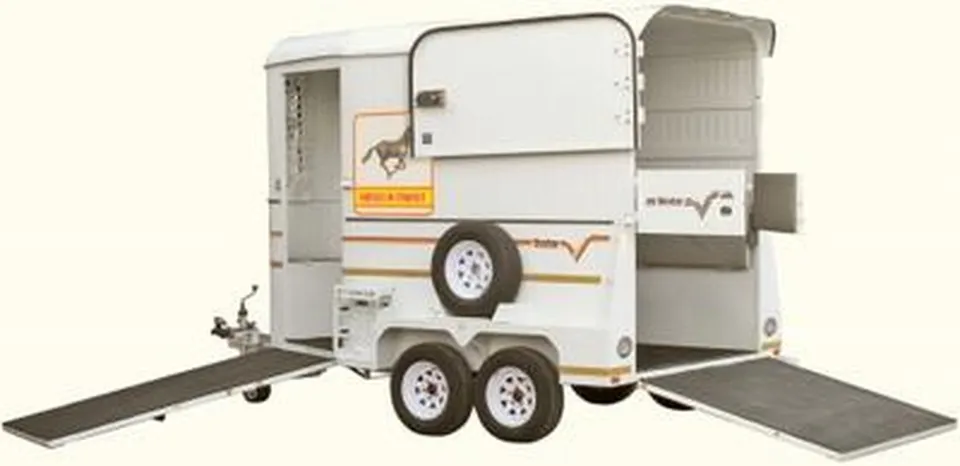

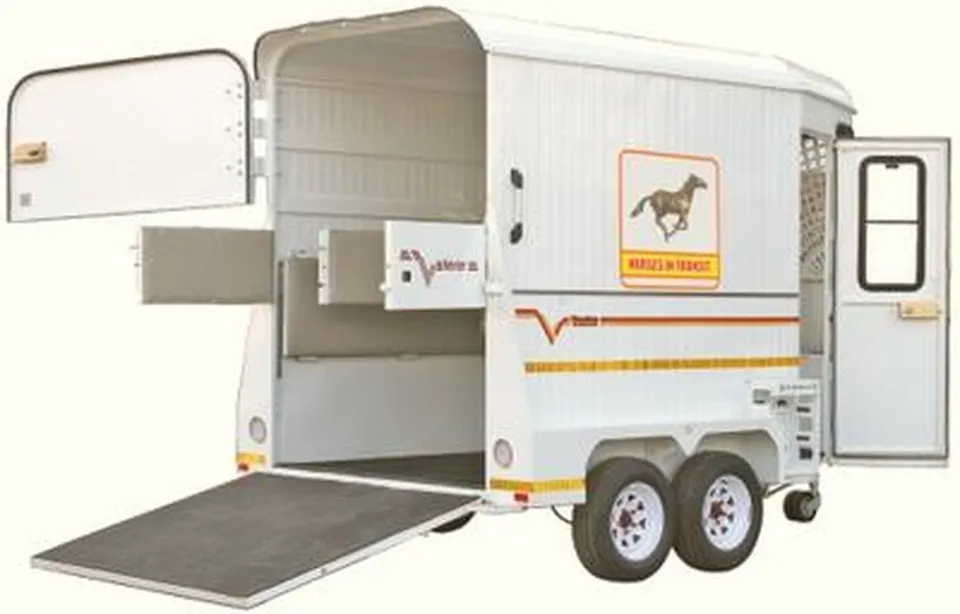

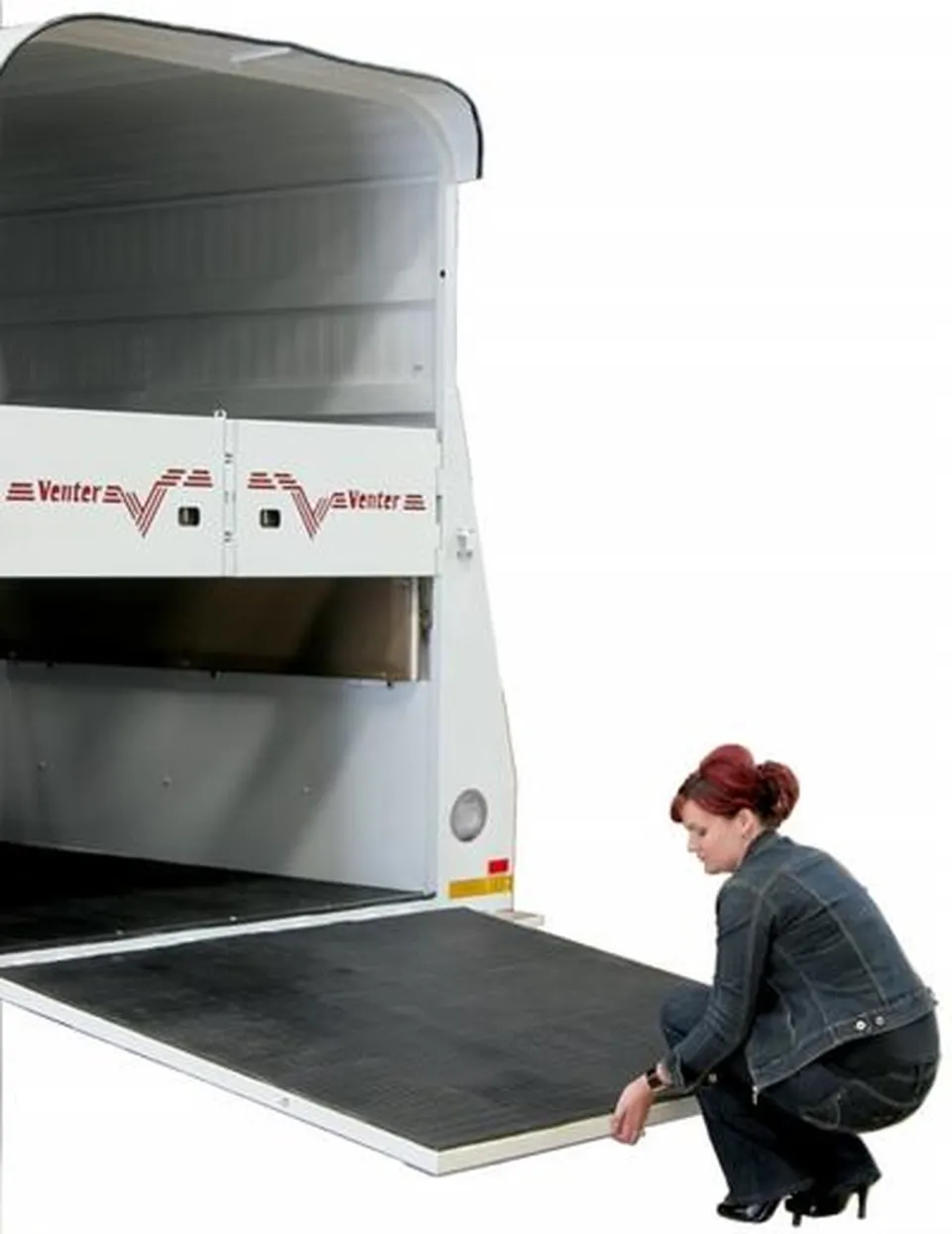

• Improved ramp, fitted with double gaslifts and push-down foot pedal, for easier opening

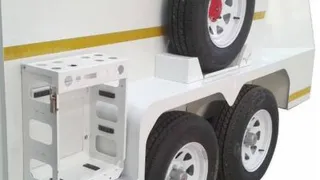

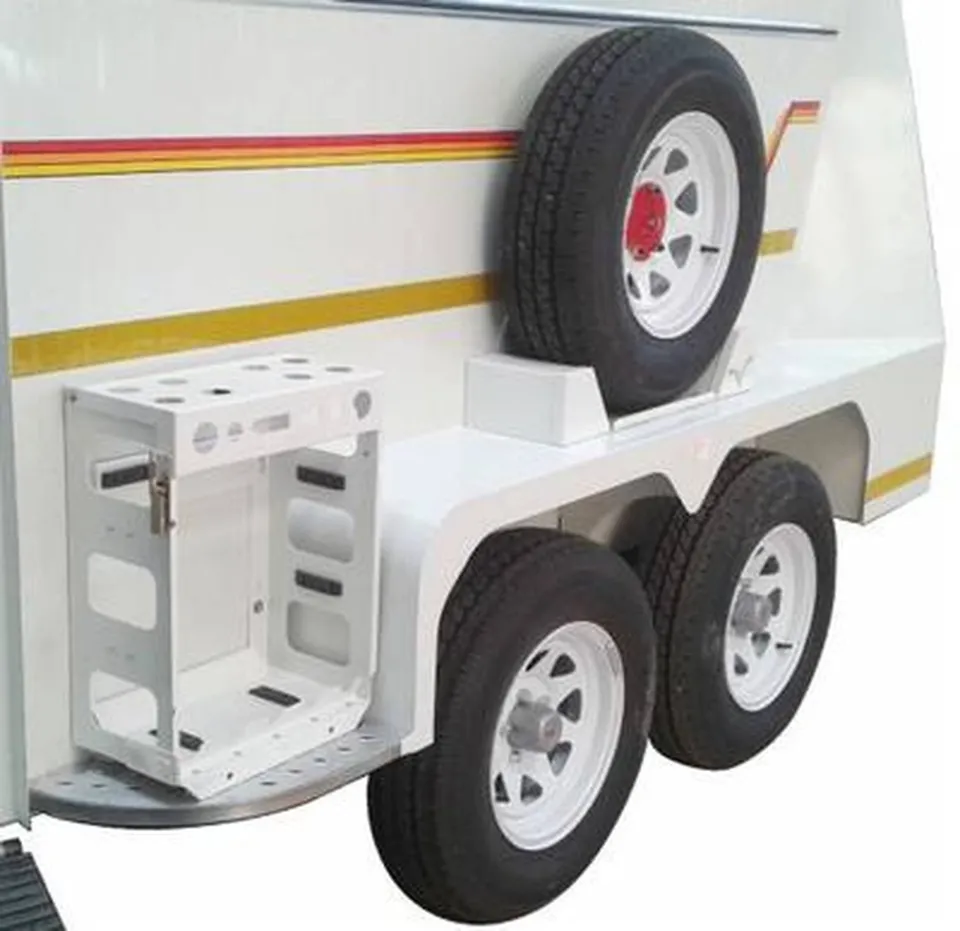

• Jerry can holder
• Large lockable rear door fitted above ramp, opening 270 deg
• Robust chassis, A-Frame and floor plates

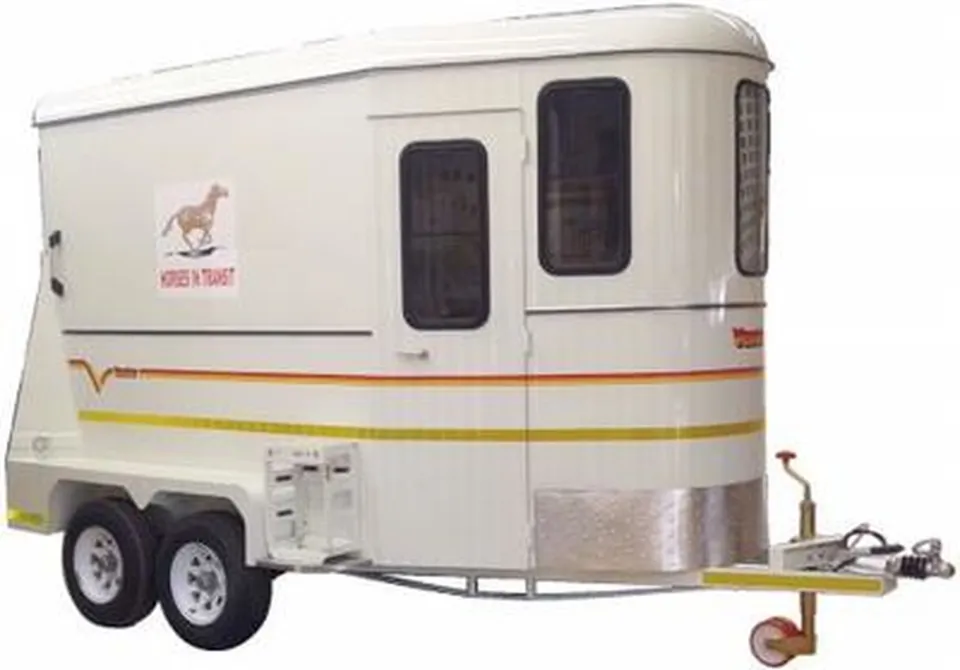

• Three large windows, middle one protected by a sheet steel screen, two outside windows are fitted with open/close sliding facility
• Two air vents fitted on the roof of the trailer

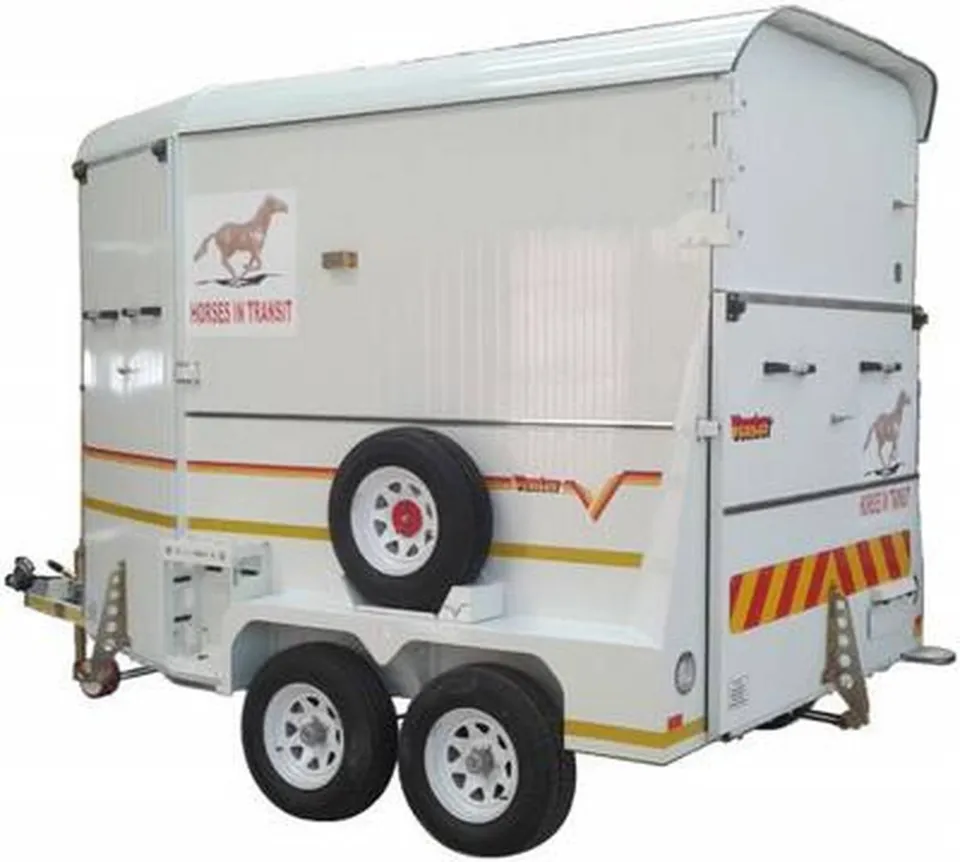

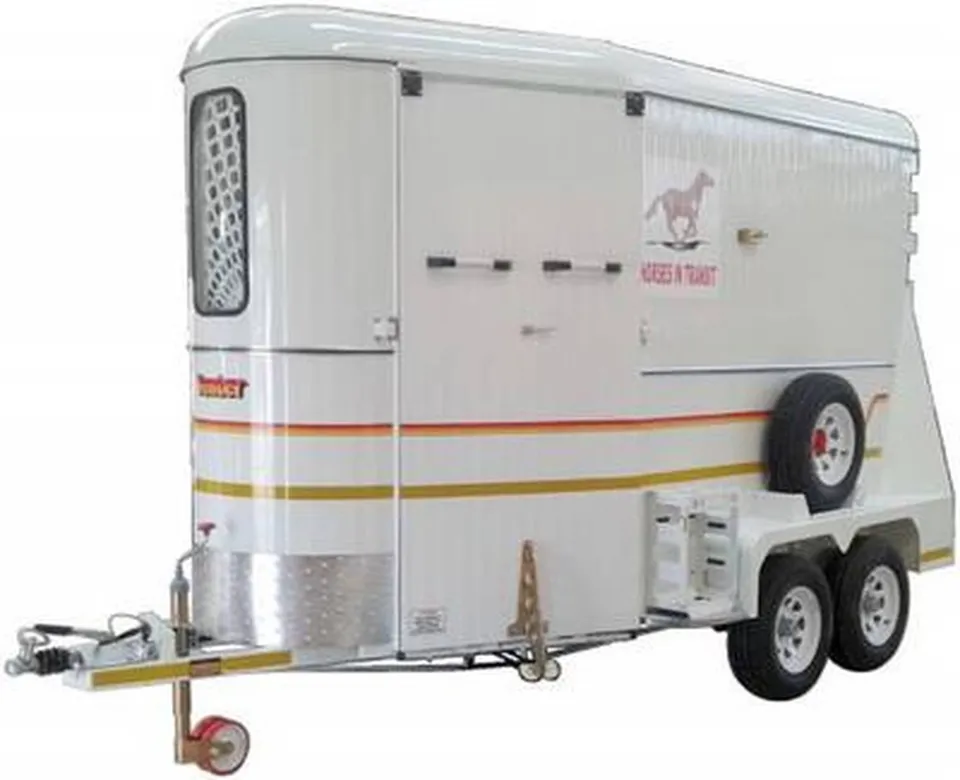

• Lockable, easily accessible spare wheel holder, fitted on top of modern improved mudguards
• Spare wheel 195 x 14 inch

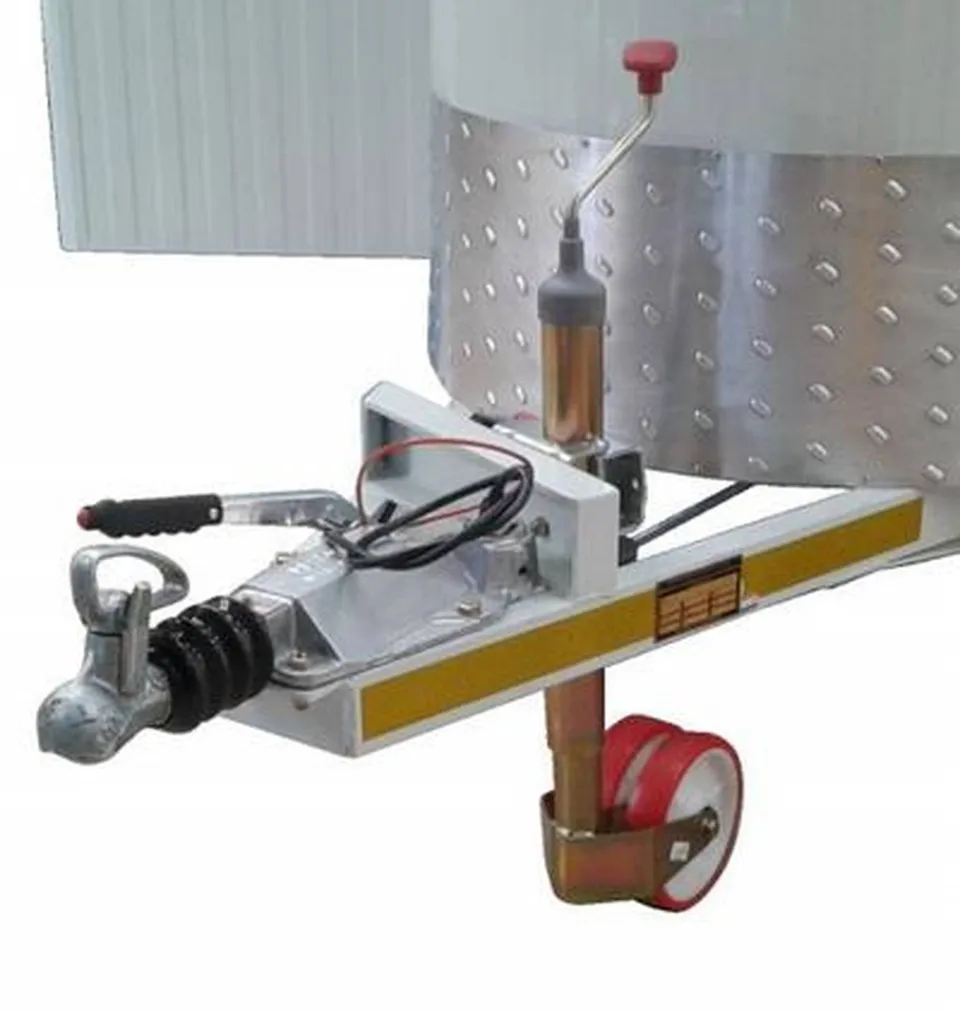

• Double jockey wheel 200mm dia
• Heavy duty rubber floor mats
• All doors have stainless steel bullet hinges and ramp has padlockable facilities
• Removable rear stable doors

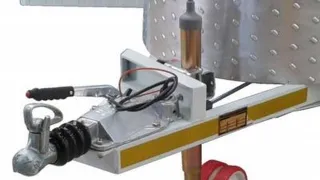

• Alko-Trailco coupler and axles
• Partition between horses of modern designed perforated steel screen, allowing horses to see each other and gain confidence
• Left and right insides of padded vinyl covered panels, fitted with fold-away beds

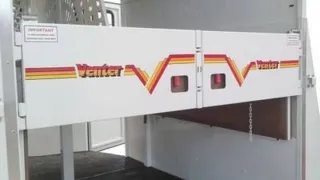

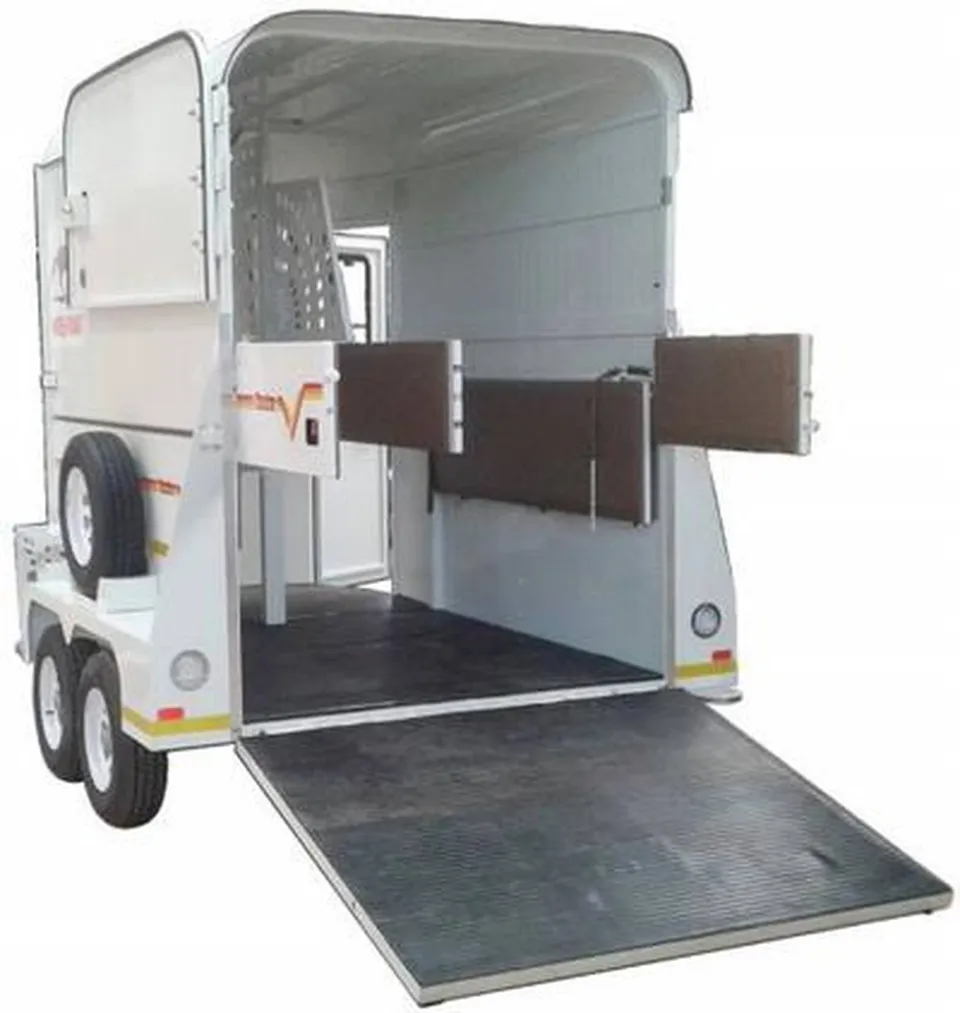

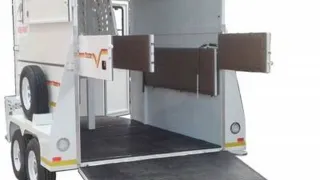

• Adjustable padded breast bars and rear padded panels to ensure safety of horses in transit
• Front seat with storage compartment
• Body constructed from corrosion resistant rigidised zinc galvanised or Electro-galvanised steel, prime coated and quality white final paint is applied

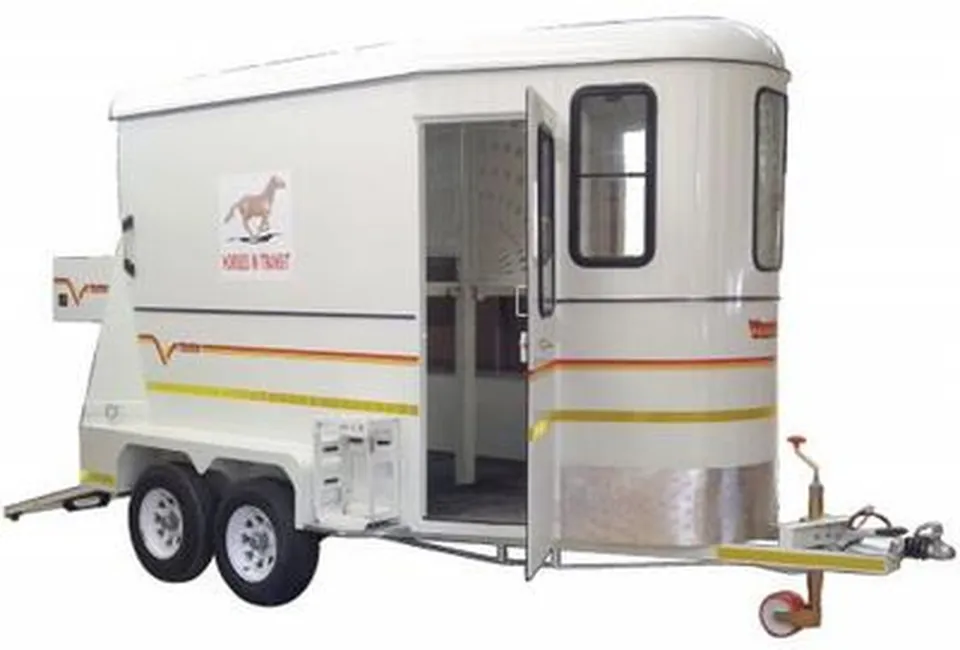

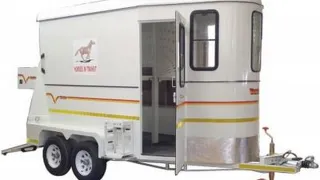

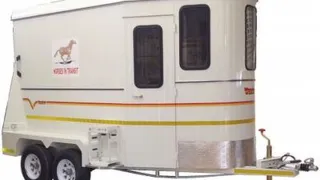

• Convenient front door for groom
• Stainless steel tether ring for horses

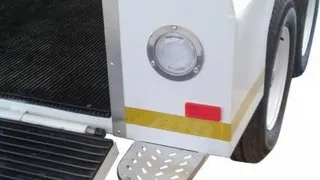

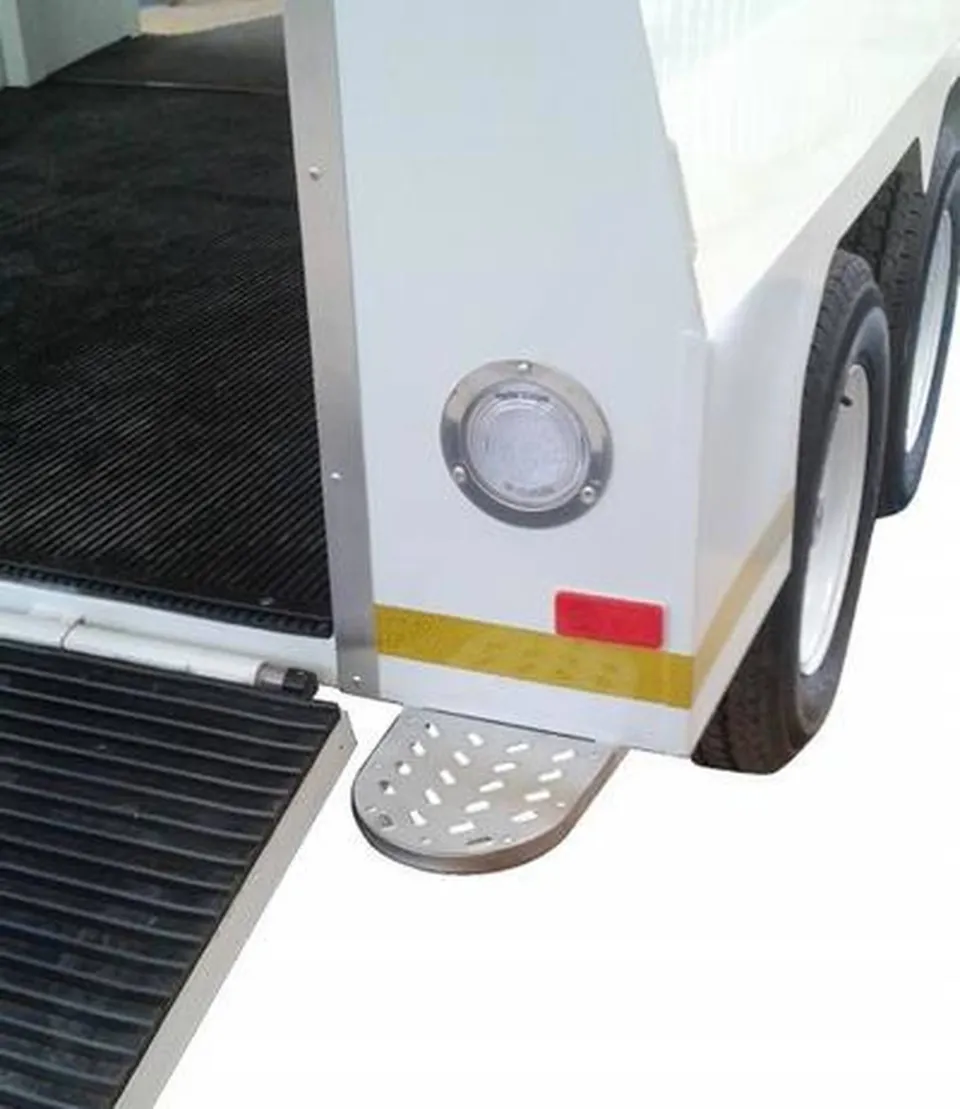

• Stainless steel structure for foot plates
• The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.

Dimensions
Height (over all): 2900 mm
Height (inside): 2300 mm
Length (body): 3825 mm
Length (over all): 5000 mm
Width (inside): 1730 mm
Width (over all): 2380 mm
Ground Clearance: 310 mm

Technical Info
Tare Mass: 1240 kg
GVM: 3200 kg
Pay Load: 1960 kg
Brakes: Run-in brakes
Axle Length: 2165 mm
Axle Capacity: 1800 kg x 2
Leaf Springs: Rubber suspension
Wheels: 195 x 14 inch

Doors
Ramp (rear - height) 1450 mm
Ramp (rear - width) 1805 mm

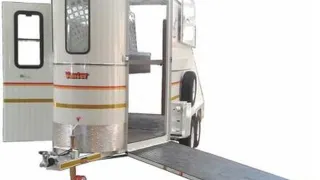

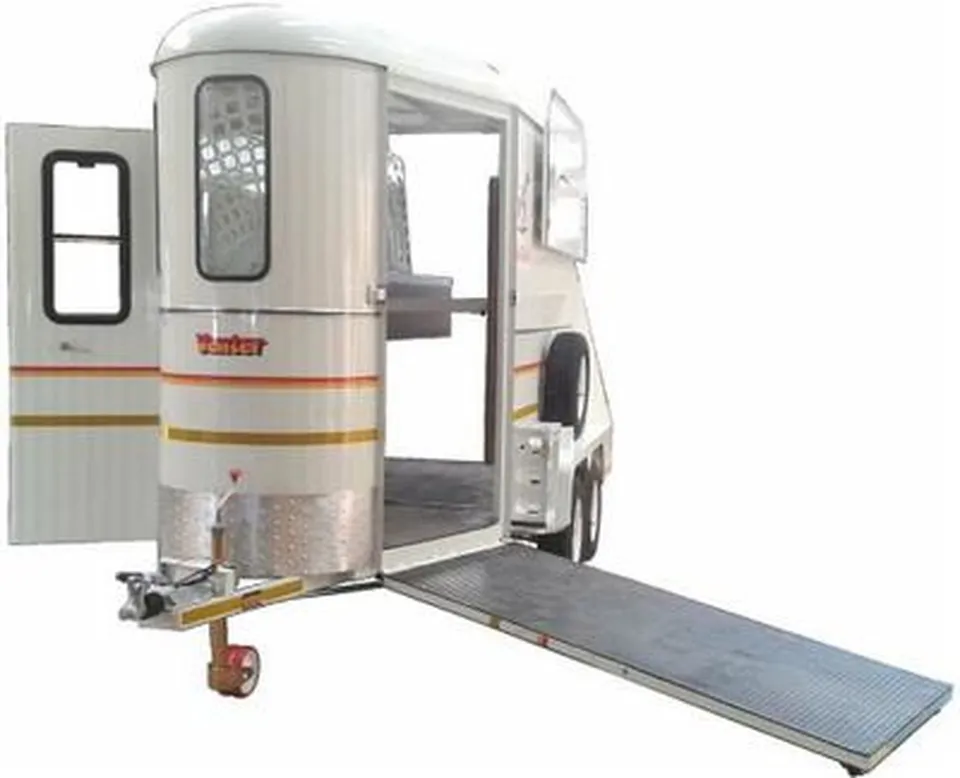

Ramp (front - height) 2175 mm
Ramp (front - width) 1060 mm
Door (front - height) 1900 mm
Door (front - width) 650 mm
