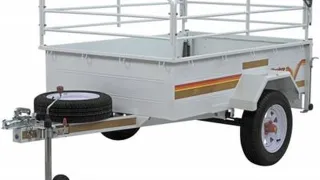

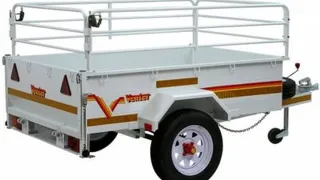

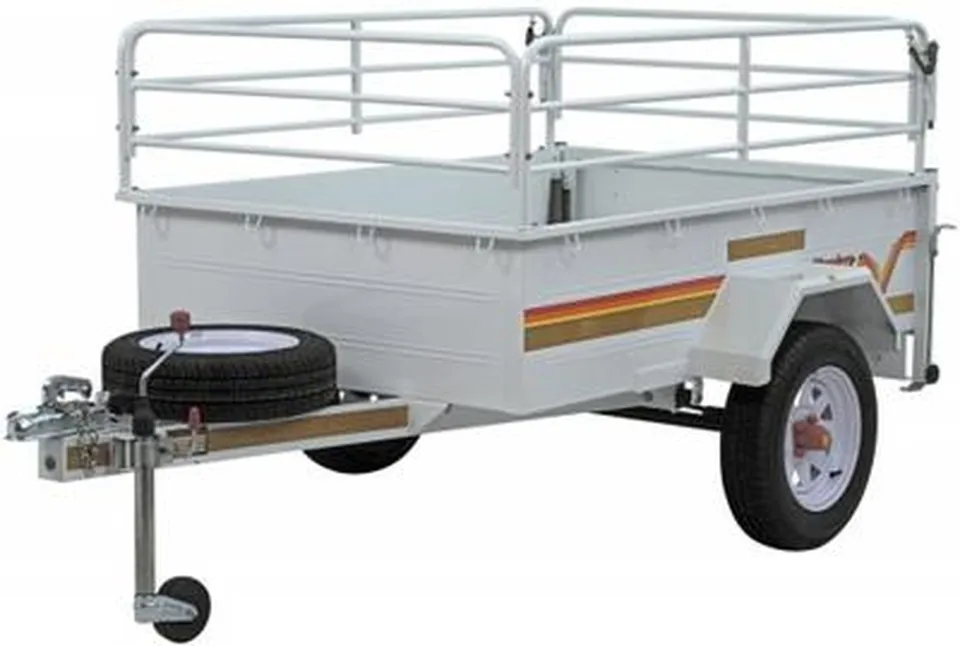

This trailer is the perfect all-rounder for all types of loads. Practical and functional it sports many features.

Features:

A new deep body for more capacity
Durable axle with larger bearings
Rigid chassis and rigidised floor

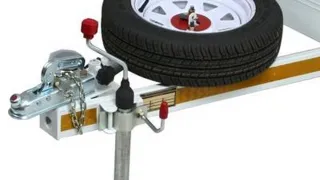

New adjustable 6 inch jockey wheel

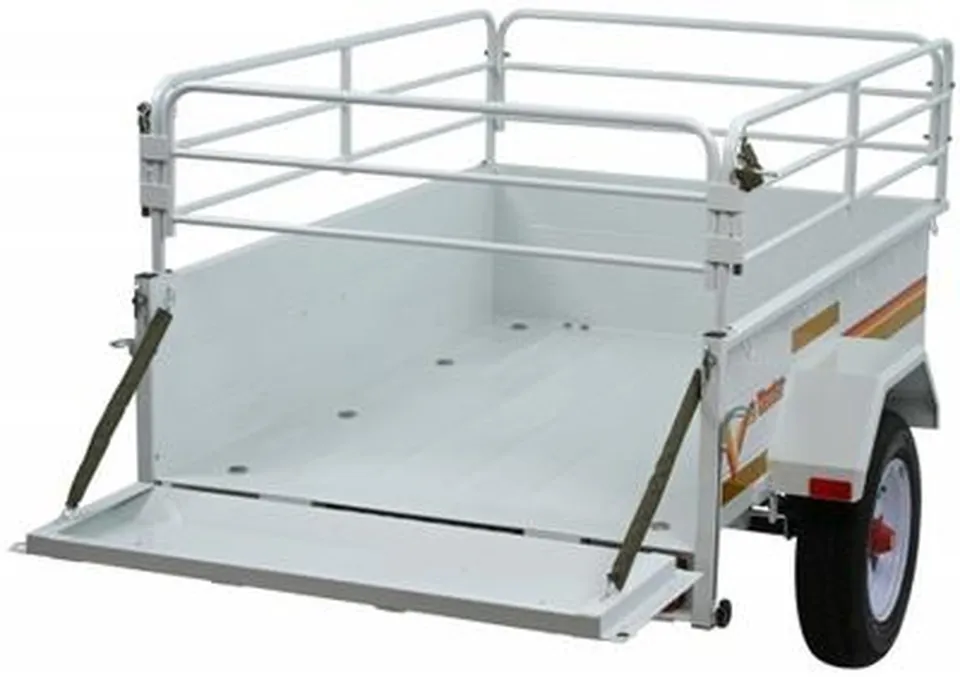

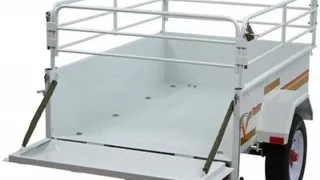

Hinged rails and tailgate for easy loading
Adjustable support legs on rear corners

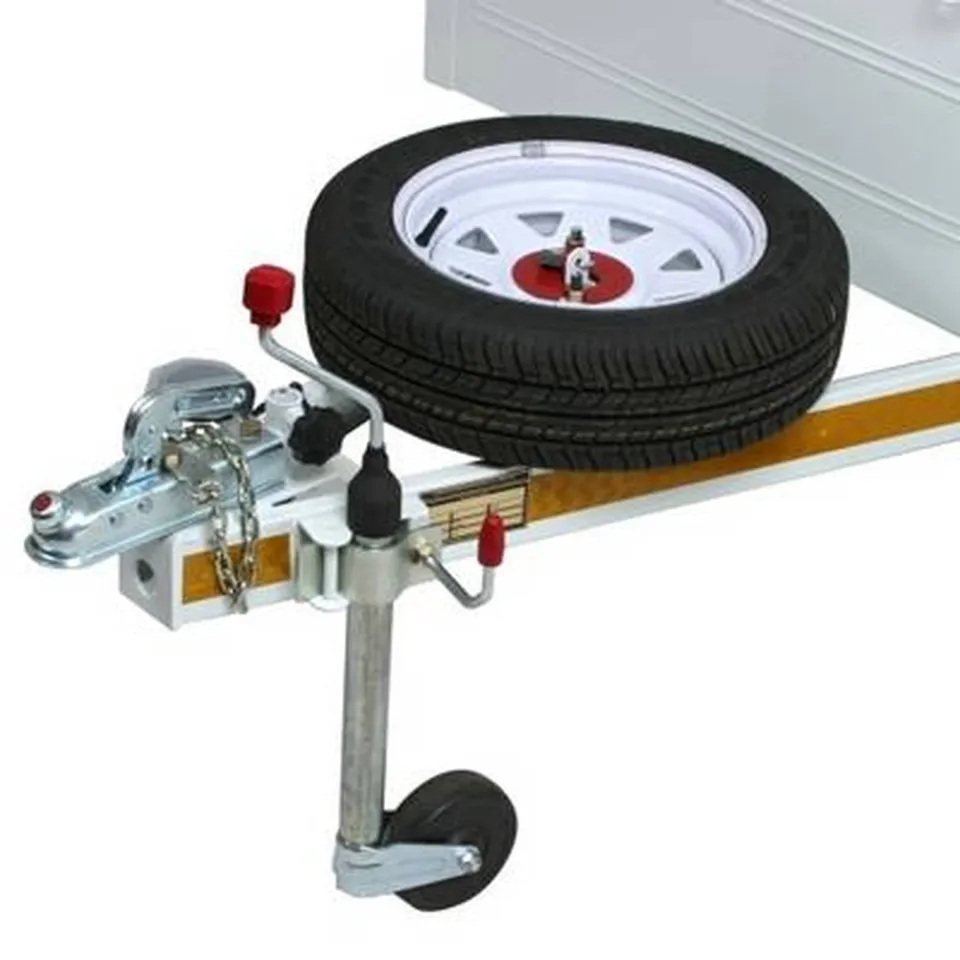

Spare wheel and lockable spare wheel bracket

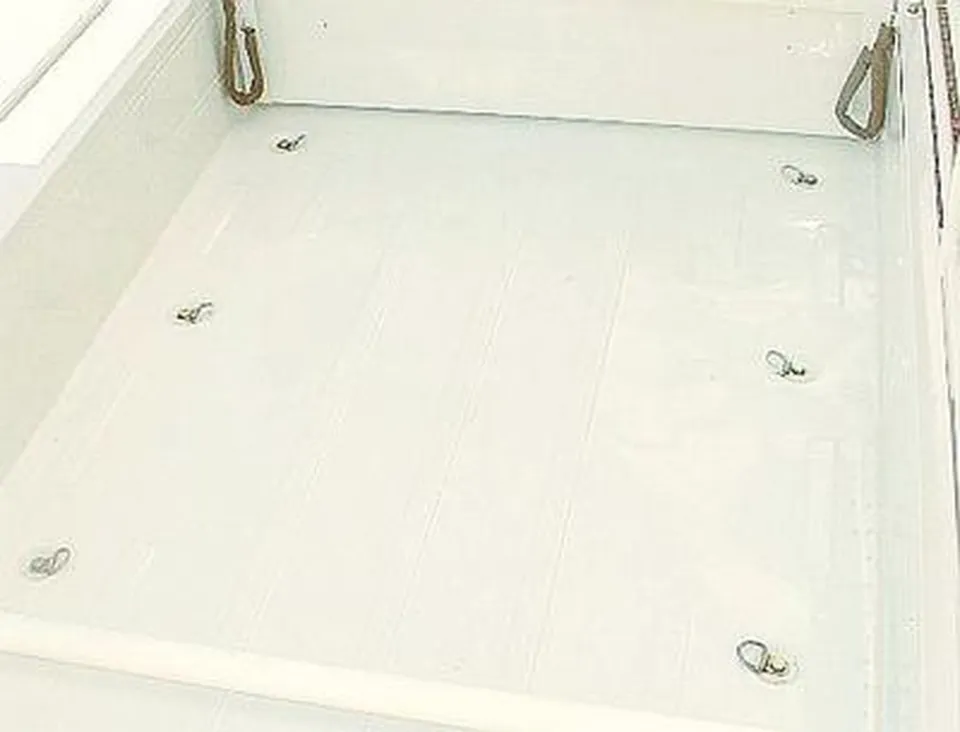

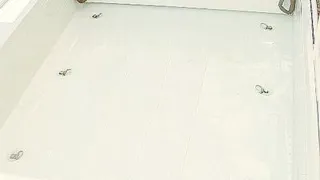

Tie-down lugs in the floor and on the body
Zinc galvanised or electro-galvanised steel body

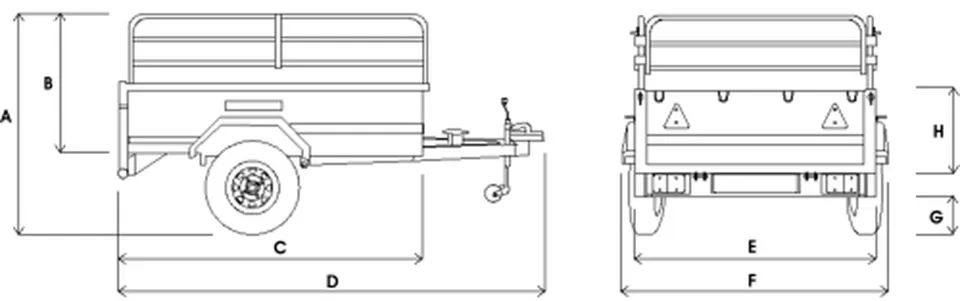

Dimensions:

A - Height (over all) - 1305 mm
H - Height (inside) - 430 mm
B - Height - 850 mm
C - Length - 1850 mm
D - Length (over all) - 2835 mm
E - Width (inside) - 1290 mm
F - Width (over all) - 1700 mm
G - Ground Clearance - 260 mm

Technical Info:

Tare Mass: 160 kg
GVM: 700 kg
Pay Load: 540 kg
Brakes: No Brakes
Axle Length: 1450mm
Axle Capacity: 750 kg
Leaf Springs: 4 Blade short 27 inch
Wheels: 155 x 13 inch

Extra’s:
Rubber Lining Body
Pvc Cover
