Features:

Designed for transportation of bulky, heavy weight items.
Light weight and durable, this well balanced, multi-purpose trailer is sturdily made.
Both body and floor are constructed from 1.6mm corrosion resistant electro-galvanised sheet steel.
The floor is designed in a U-shape, for rigidity and strength.
Lugs on body sides for securing items.
Front rail.

Optional Extra’s:
Spare Wheel
Rubber Linings

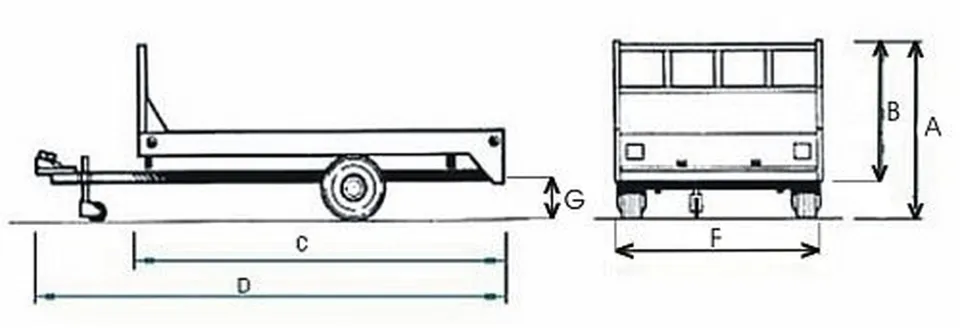

Dimensions:

A - Height (over all) - 1620 mm
B - Height - 760 mm
C - Length (body) - 3000 mm
D - Length (over all) - 4350 mm
E - Width (inside) - 1720 mm
F - Width (over all) - 2020 mm
G - Ground Clearance - 220 mm

Technical Info:

Tare Mass: 420 kg
GVM: 1420 kg
Pay Load: 1000 kg
Brakes: Run - in
Axle Length: 1530 mm
Axle Capacity: 1600 kg
Leaf Springs: 10 Blade
Wheels: 195 x 14 inch
