Features:

• Designed for transportation of luggage, bulky goods, equipment, parcels etc.
• Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.

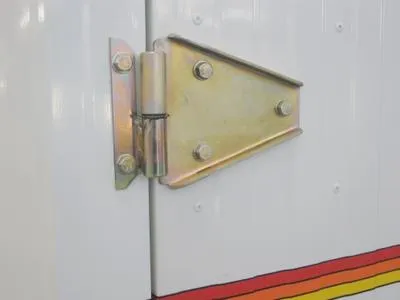

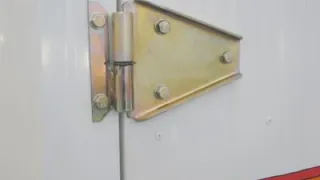

• Doors have heavy-duty robust hinges for longevity

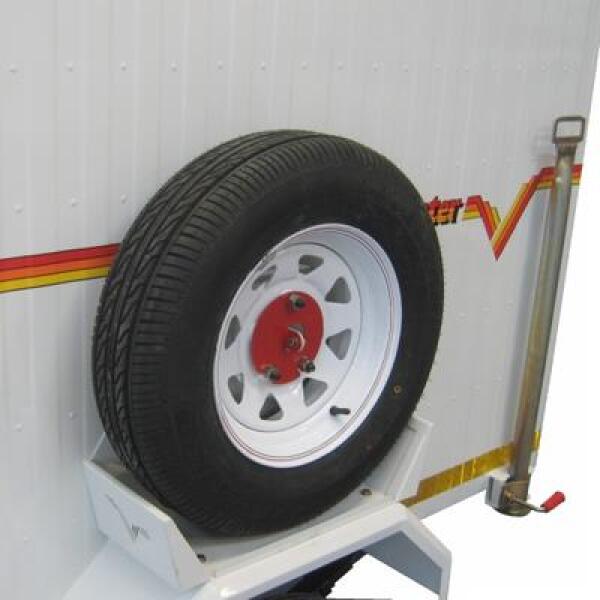

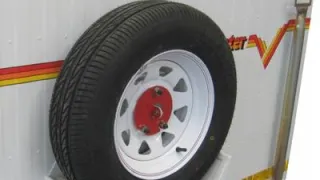

• Pad-lockable spare wheel holder mounted on left mudguard

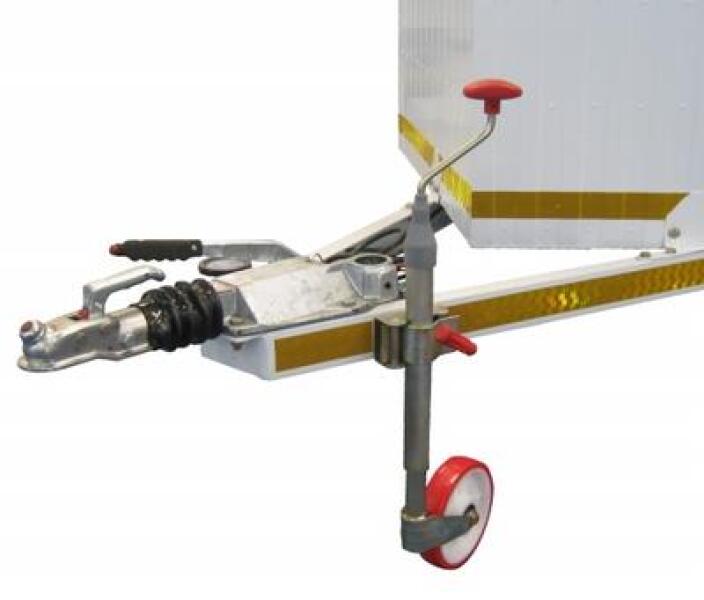

• Adjustable jockey wheel 8 inch

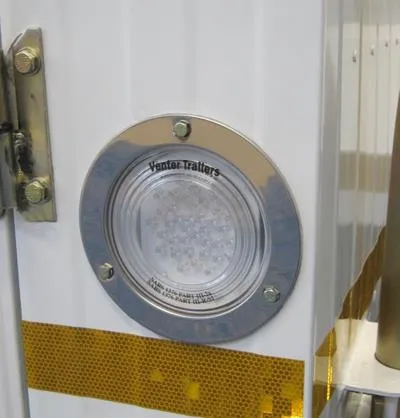

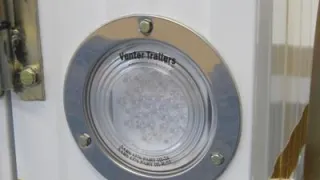

• Multi-function LED lights

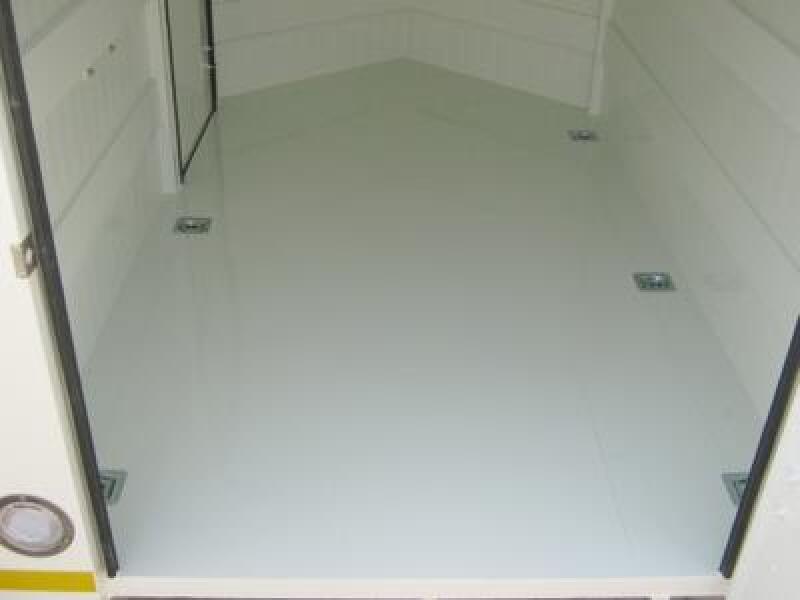

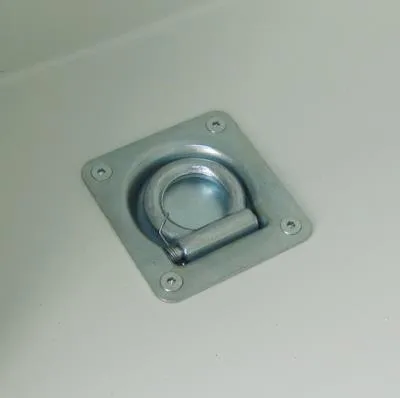

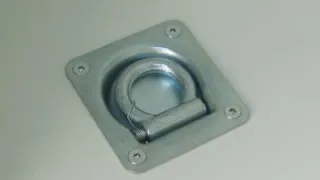

• 5 x floor-recessed heavy-duty tie-down rings

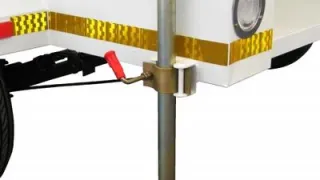

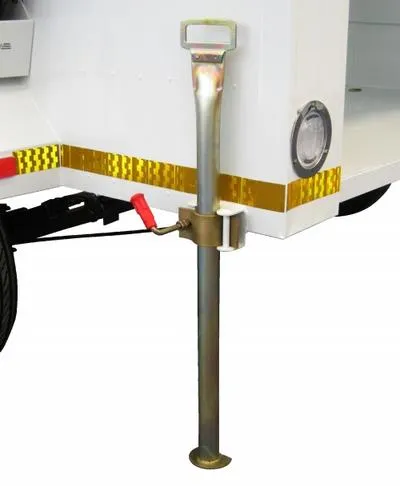

• Adjustable rigid support legs for uneven ground

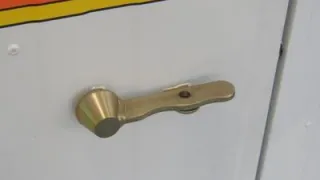

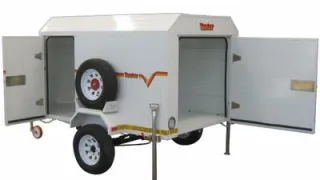

• Back and side door doors are pad-lockable.
• Sides are strengthened by formed hat-sections which prevents drumming and vibration.
• Including spare wheel 195x14 inch

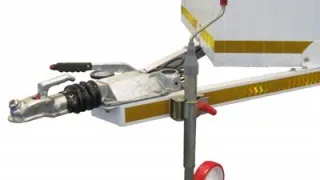

• Heavy-duty coupler with brake



Dimensions
A    Height (over all) 2200 mm
B    Height (side) 1650 mm
C    Length (body) 2960 mm
D    Length (over all) 3860 mm
E    Width (inside) 1525 mm
F    Width (over all) 2050 mm
G    Ground Clearance 260 mm

Technical Info
Tare Mass 560 kg
GVM 1525 kg
Pay Load  965 kg
Brakes Run - in
Axle Length 1830 mm
Axle Capacity 1800 kg
Leaf Springs 10 Blade
Wheels 195 x 14 inch

Doors
Door (rear - height) 1330 mm
Door (rear - width) 1050 mm
Door (side - height) 1280 mm
Door (side - width) 650 mm
