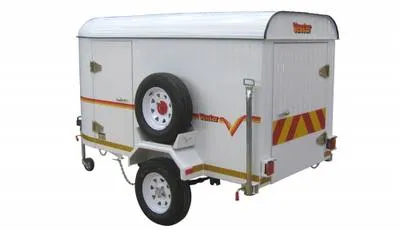

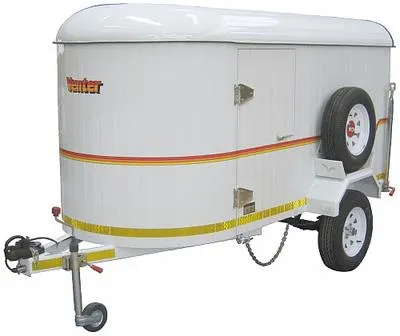

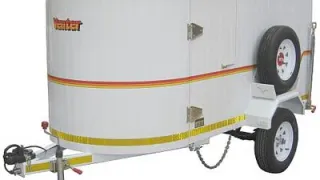

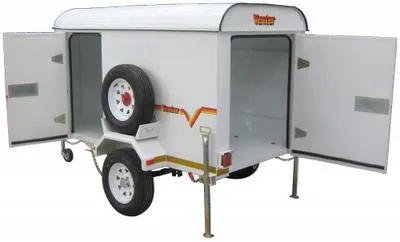

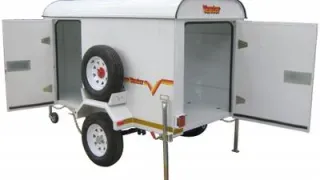

Features:

• Designed for transportation of luggage, bulky goods, plants, sport equipment, parcels etc.
• Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.
• Pad-lockable doors have heavy-duty robust hinges for longevity

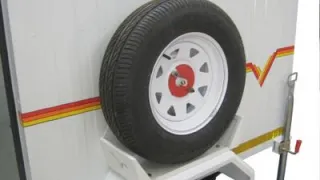

• Pad-lockable spare wheel holder mounted on left mudguard

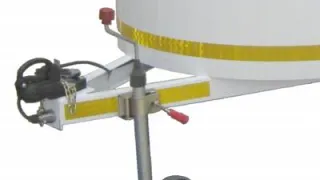

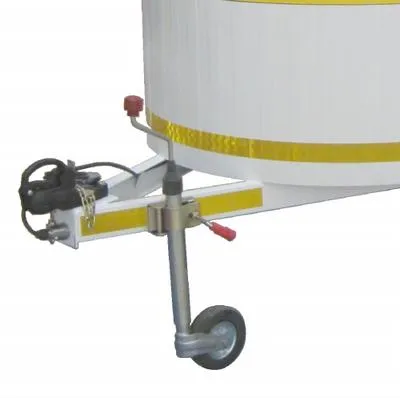

• Adjustable jockey wheel 6 inch

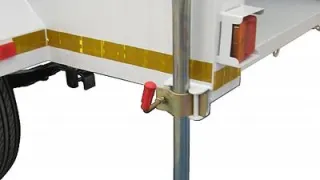

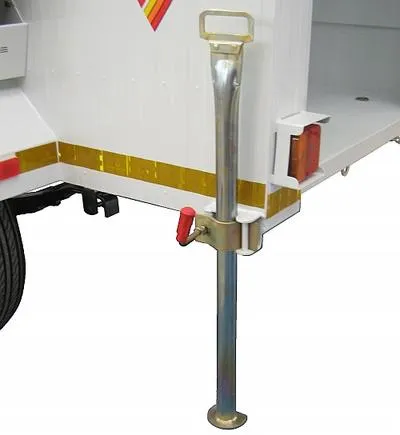

• Adjustable rigid support legs for uneven ground

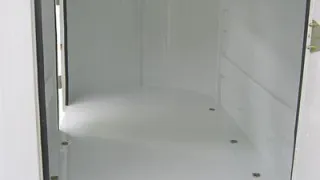

• 7 x tie-down rings

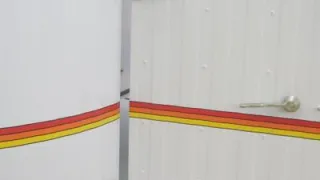

• Sides are strengthened by formed hat-sections which prevents drumming and vibration.
• New aerodynamic round nose creating additional storage space.
• Including spare wheel 165x13 inch
• The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.



Dimensions
A    Height (over all) 1820 mm
B    Height (side) 1350 mm
C    Length (body) 2690 mm
D    Length (over all) 3235 mm
E    Width (inside) 1200 mm
F    Width (over all) 1660 mm
G    Ground Clearance 215 mm

Technical Info
Tare Mass 340 kg
GVM 750 kg
Pay Load 410 kg
Brakes No brakes
Axle Length 1480 mm
Axle Capacity 1250 kg
Leaf Springs 8 blade
Wheels 165 x 13 inch

Doors
Door (rear - height) 1010 mm
Door (rear - width) 845 mm
Door (side - height) 1010 mm
Door (side - width) 550 mm

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
