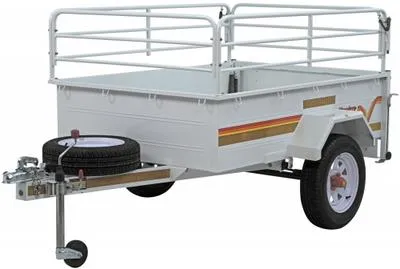

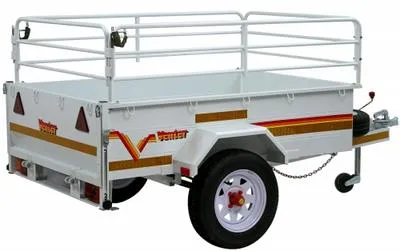

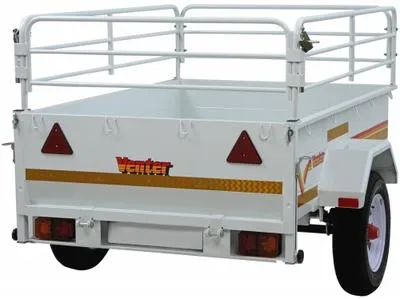

This trailer is the perfect all-rounder for all types of loads. Practical and functional it sports many features.

Features

1. A new deep body for more capacity
2. Durable axle with larger bearings
3. Rigid chassis and rigidised floor

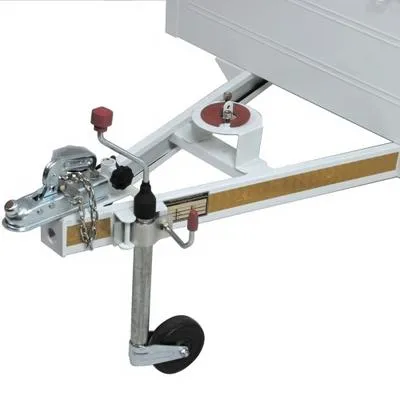

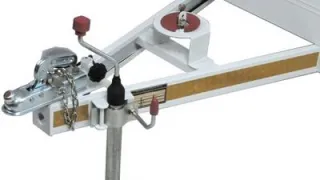

4. New adjustable 6 inch jockey wheel

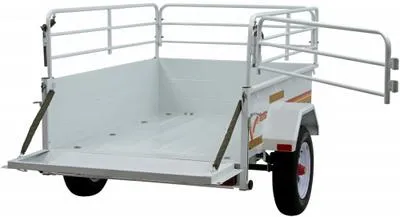

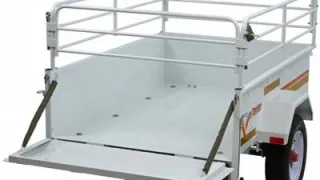

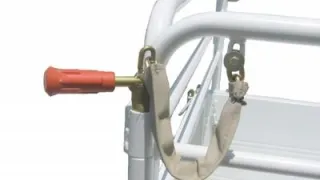

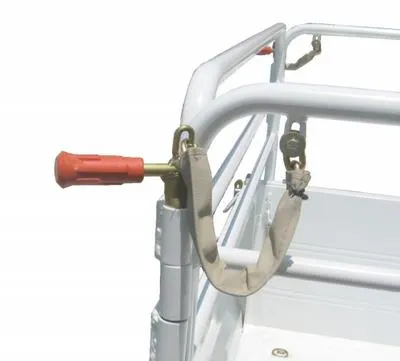

5. Hinged rails and tailgate for easy loading

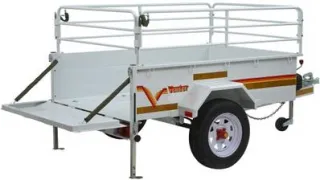

6. Adjustable support legs on rear corners

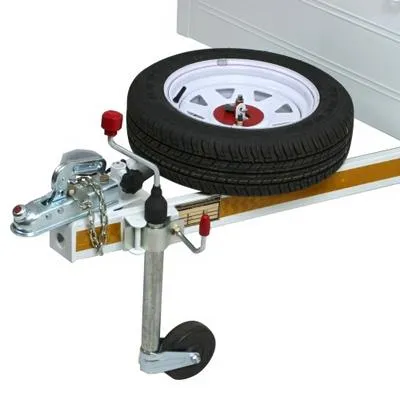

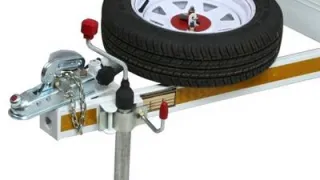

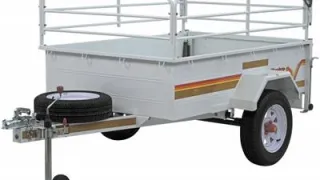

7. Spare wheel and lockable spare wheel bracket

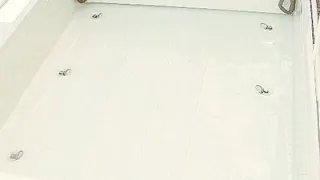

8. Tie-down lugs in the floor and on the body
9. Zinc galvanised or electro-galvanised steel body

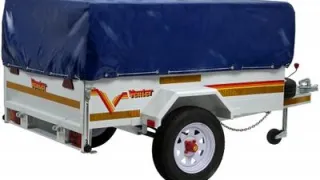

10. Optional weather cover



Dimensions
A    Height (over all) 1305 mm
B    Height (side) 850 mm
C    Length (body) 1850 mm
D    Length (over all) 2835 mm
E    Width (inside) 1290 mm
F    Width (over all) 1700 mm
G    Ground Clearance 260 mm
H    Height (body) 430 mm

Technical Info
Tare Mass 160 kg
GVM 700 kg
Pay Load 540 kg
Brakes No Brakes
Axle Length 1450 mm
Axle Capacity 700 kg
Leaf Springs 4 Blade short 27 inch
Wheels 155 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
