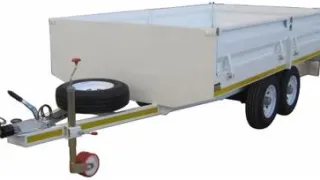

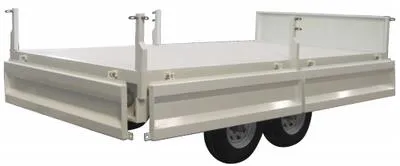

This heavy-duty trailer is ideal for the transport of heavy items, in agricultural and industrial sectors.

Features

• Dropsides on three sides

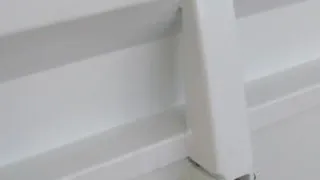

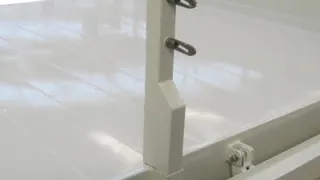

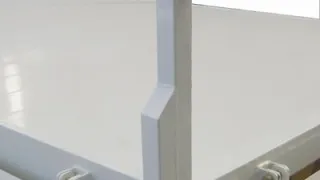

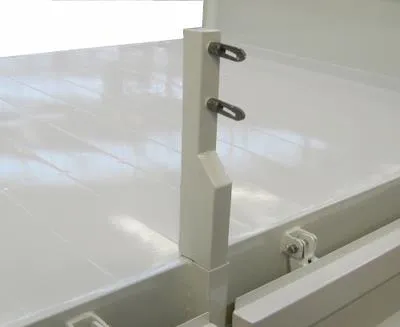

• Dropside vertical support are removable for easy access

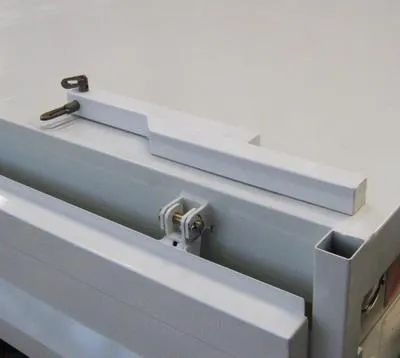

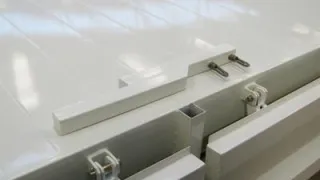

• Heavy-duty dropside hinges

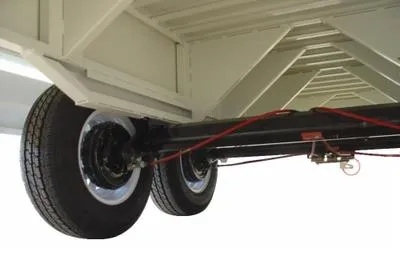

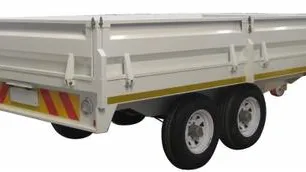

• Tandem axles each with 2000kg load capacity
• Brakes assisted by additional booster
• Five stud 14 inch wheels

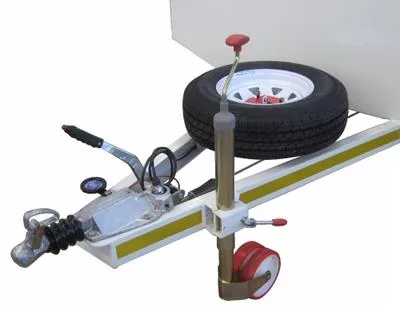

• Spare wheel bracket front mounted on A-frame
• Heavy-duty Alko coupler with handbrake
• Multi-function LED lights
• Numberplate holder and light
• Strengthened floor for loads

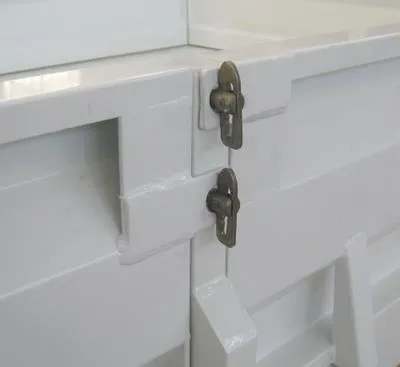

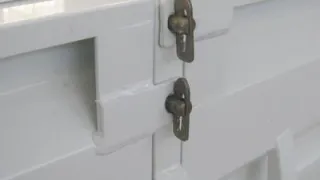

• Toggle catches on all side supports
• 8 inch adjustable jockey wheel



Dimensions
A    Height (over all) 1400 mm
B    Height (side) 600 mm
C    Length (body) 3620 mm
D    Length (over all) 5220 mm
E    Width (inside) 1925 mm
F    Width (over all) 2125 mm
G    Ground Clearance 300 mm

Technical Info
Tare Mass 800 kg
GVM 2800 kg
Pay Load 2000 kg
Brakes Run-in and booster
Axle Length 1600 mm
Axle Capacity 2 x 2000 kg
Leaf Springs Rubber suspension
Wheels 195 x 14 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
