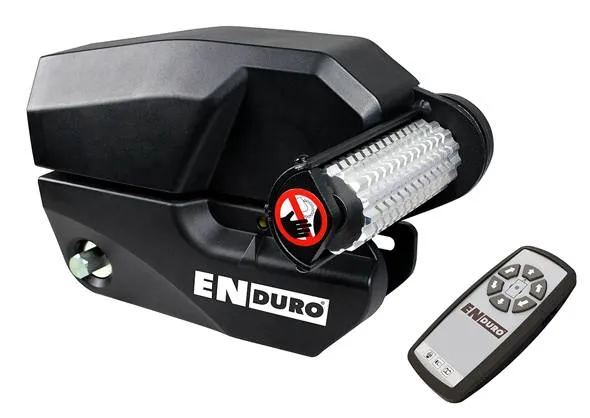

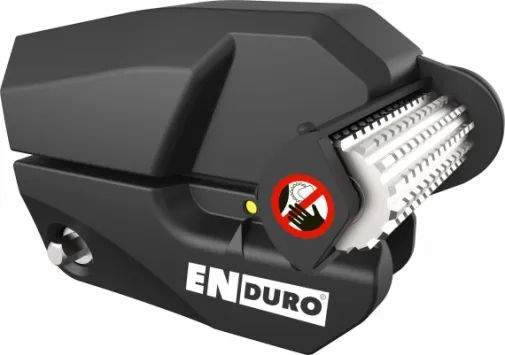

Semi-automatic shunting system for caravans up to 2500kg (with 4 engines) with a compact design.

Simply connect and disconnect the drive rollers on the belt with the supplied pendulum (both sides simultaneously)
Includes soft start / stop technology for accurate and shock-free maneuvering
Solid aluminum drive rollers
Splashproof and corrosion-resistant

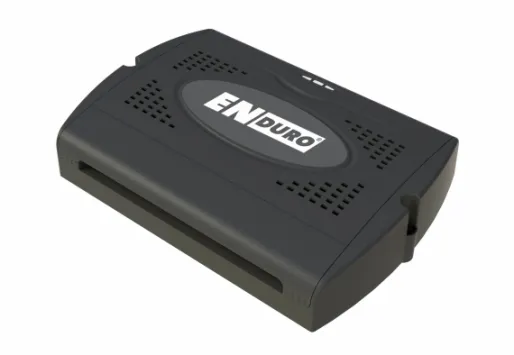

Error messages are displayed via the control box and remote control using LEDs
Very user-friendly remote control with softgrip and easy-to-use buttons
Also suitable for use on double-axle caravans: with 2 or 4 engines

Technical Specifications

• Type EM303 +
• Art.no.91657
• Connection voltage12 Volt DC
• Average power consumption20 Ampère
• Max. power consumption100 Ampère
• Speed ​​approx.9 cm / sec.
• Weight approx.37 kg (excluding battery)
• Max. total weight at: - single axle1800 kg -1500 kg at 18% slope
  - dual-axle (2 engines)1800 kg - 1500 kg at 18% slope
  - dual-axle (4 engines)2500 kg - 1800 kg at 18% slope
• Materialcoated steel
