Features

• Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised electro galvanized sheet steel.
• Dogs are separated by partitions.

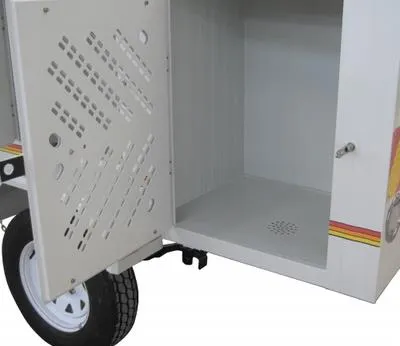

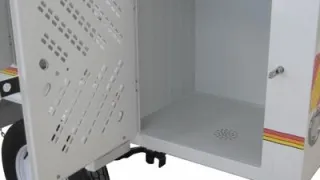

• Each compartment is fitted with a mesh hole for cleaning.

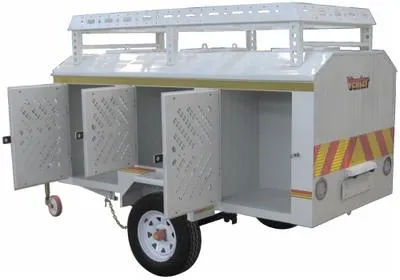

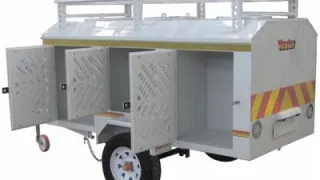

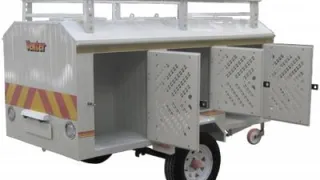

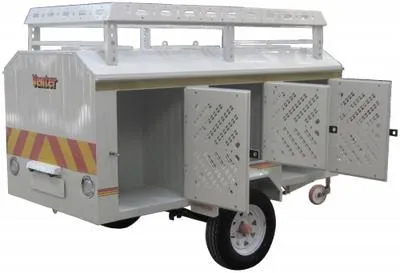

• Six doors that are pad-lockable.
• Six adjustable sliding doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-function LED lights

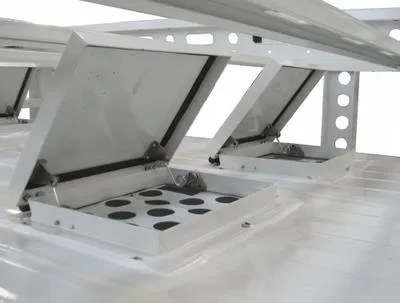

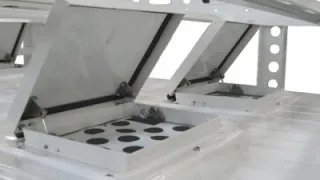

• Weather-proof sprung roof-mounted air vents (trailer can be supplied without roof vents)

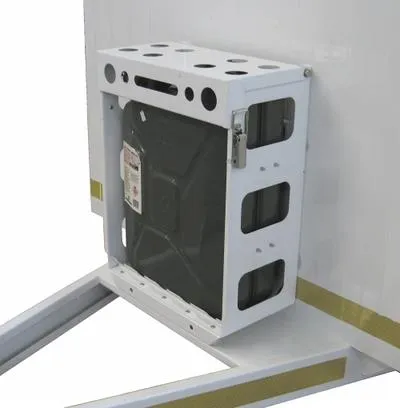

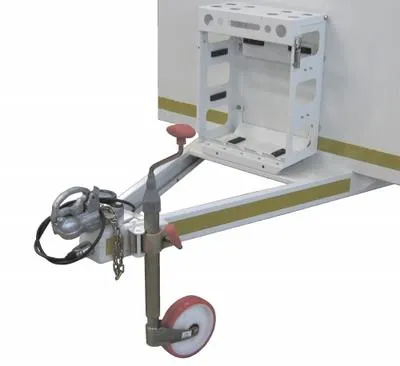

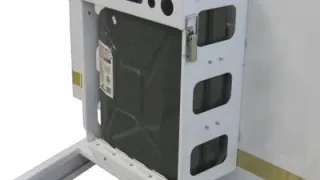

• Pad-lockable front mounted spare wheel bracket
• Steel number plate mounting panel
• Robust number plate light

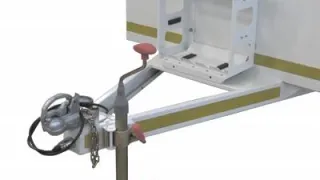

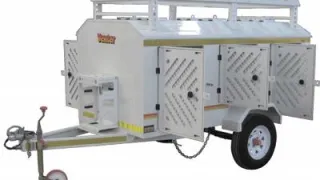

• Adjustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 165x13inch
• Steel roof rack (2124x999x380mm) with clearance for opening roof vents



Dimensions
A    Height (over all) 1510 mm
B    Height (side) 1040 mm
C    Length (body) 2400 mm
D    Length (over all) 3490 mm
E    Width (inside) 1170 mm
F    Width (over all) 1645 mm
G    Ground Clearance 255 mm

Technical Info
Tare Mass 300 kg
GVM 700 kg
Pay Load 400 kg
Brakes No brakes
Axle Length 1450 mm
Axle Capacity 750 kg
Leaf Springs 6 Blade 36 inch
Wheels 165 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
