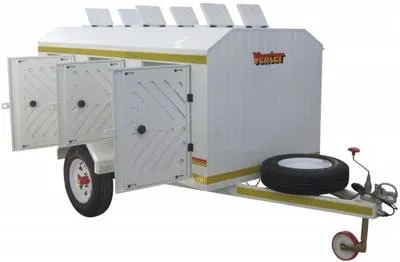

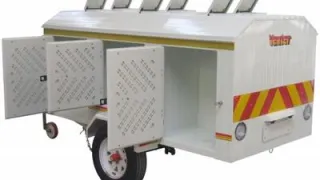

Features

•Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised zinc galvanized sheet steel.

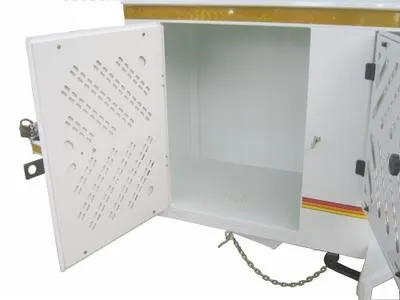

• Dogs are seperated by partitions.

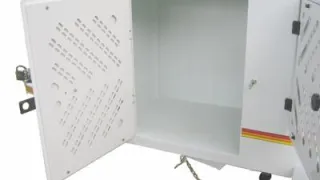

• Each compartment is fitted with a mesh hole in the floor for cleaning.

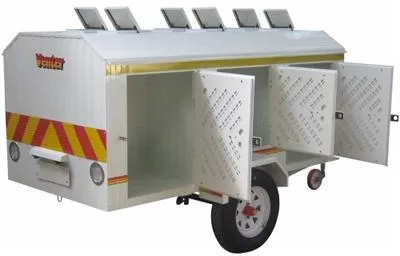

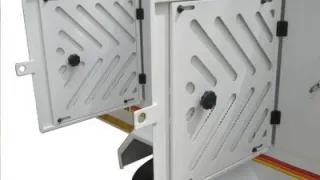

• Six doors that are pad-lockable.

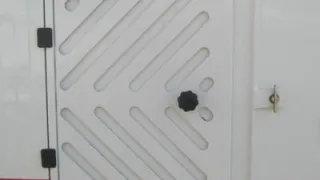

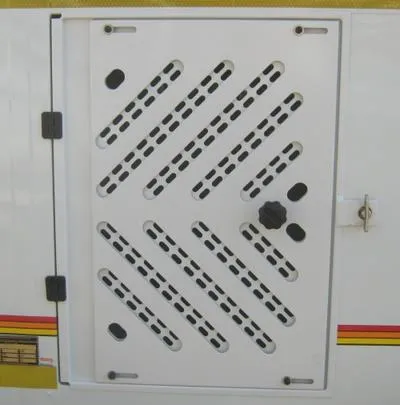

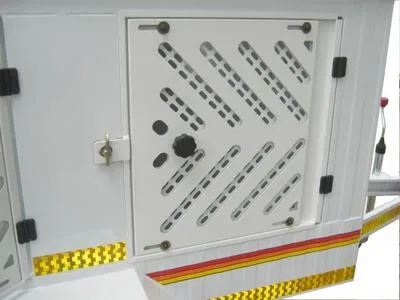

• Adjustable sliding vents on doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-function LED lights

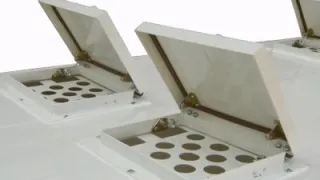

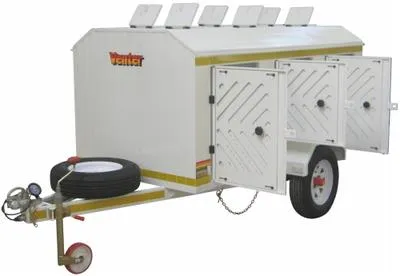

• Weather-proof sprung roof-mounted air vents, with screens to prevent dogs pushing through opening

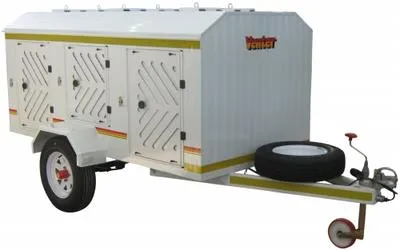

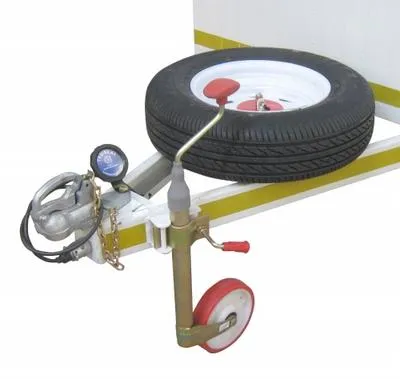

• Pad-lockable front mounted spare wheel bracket
• Steel numberplate mounting panel
• Robust numberplate light

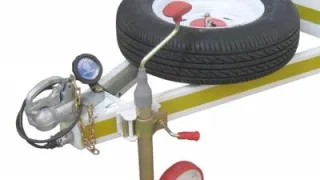

• Ajustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 165x13inch



Dimensions
A    Height (over all) 1510 mm
B    Height (side) 1040 mm
C    Length (body) 2400 mm
D    Length (over all) 3490 mm
E    Width (inside) 1170 mm
F    Width (over all) 1645 mm
G    Ground Clearance 255 mm

Technical Info
Tare Mass 300 kg
GVM 700 kg
Pay Load 400 kg
Brakes No Brakes
Axle Length 1450 mm
Axle Capacity 750 kg
Leaf Springs 6 Blade
Wheels 165 x 13

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
