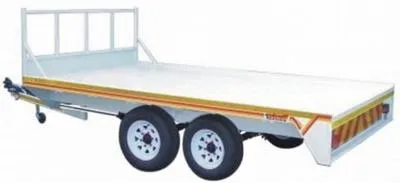

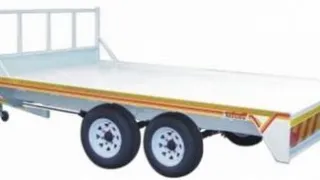

Features:
1. Designed for transportation of bulky, heavy weight items.
2. Light weight and durable, this well balanced, multi-purpose trailer is sturdily made.
3. Both body and floor are constructed from 1.6mm corrosion resistant electro-galvanised
sheet steel.
4. The floor is designed in a U-shape, for rigidity and strength.
5. Lugs on body sides for securing items.
6. Front rail.
7. Fitted with 2 rubax axles.
8. Including spare wheel 165x13 inch

Dimensions
A Height (over all) 1510 mm
B Height 760 mm
C Length (body) 3000 mm
D Length (over all) 4350 mm
E Width (inside) 1720 mm
F Width (over all) 2020 mm
G Ground Clearance 220 mm

Technical Info
Tare Mass 480 kg
GVM 1480 kg
Pay Load 1000 kg
Brakes Run-in
Axle Length 1590 mm
Axle Capacity 1100 kg x 2
Leaf Springs Rubber axle
Wheels 165 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing,
dimensions, and weights are subject to change, due to a policy of continual product
development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
