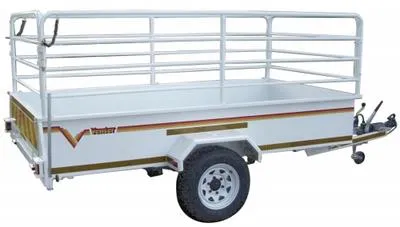

1. Superb for transportation of bulky heavy weight goods
2. A well-balanced, multi-purpose heavy-duty trailer, durable yet lightweight for towing.
3. Fitted with run-in brakes, ensuring safety and greater load capacity.
4. Body constructed from 1.6mm corrosion-resistant, electro galvanised sheet steel.
5. Floor construction from 1.6mm corrosion-resistant, electro galvanised sheet steel panels,
designed in a U-shape for durability and strength.
6. Tailgate folds down to facilitate easy loading.



Dimensions
A Height (over all) 1780mm
B Height 1280mm
   Height (rails) 790mm
C Length (body) 3000mm
D Length (over all) 4400mm
E Width (inside) 1520mm
F Width (over all) 2010mm
G Ground Clearance 245mm

Technical Info
Tare Mass 480kg
GVM 1600kg
Pay Load 1000kg
Brakes Run-in brakes
Axle Length 1830mm
Axle Capacity 1600kg
Leaf Springs 10 Blade
Wheels 185 x 14 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product
development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
