1. Superb for transportation of bulky heavy weight goods.
2. A well balanced, multi purpose, heavy duty trailer. Durable, yet light for towing.
3. Fitted with run-in brakes, ensuring safety and greater load capacity.
4. Body constructed from 1.6mm corrosion resistant, electro galvanized sheet steel.
5. Floor constructed from 1.6mm corrosion resistant, electro galvanized sheet steel.
Designed in a U shape for durability and strength.
6. 800mm rails are removable, for ease of loading.

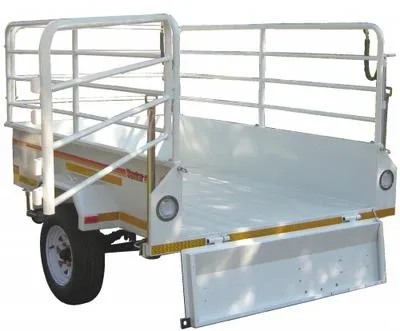

7. Tailgate folds down to facilitate loading.
8. Including spare wheel 195x14 inch.



Dimensions
A Height (over all) 1700 mm
B Height 1200 mm
C Length (body) 2400 mm
D Length (over all) 3850 mm
E Width (inside) 1520 mm
F Width (over all) 2010 mm
G Ground Clearance 245 mm

Technical Info
Tare Mass 440 kg
GVM 1600 kg
Pay Load 1000 kg
Brakes Run-in brakes
Axle Length 1830 mm
Axle Capacity 1600 kg
Leaf Springs 10 Blade
Wheels 185 x 14 inch
